  • Pneumatic Control Module

    • Pneumatic Control Module

    $88.99
    Software Software Hardware Hardware User Manual CAD CAD & Drawings Firmware Firmware
    SKU:
    14-806777
    Adding to cart… category.add_cart_announcement

    Product Description

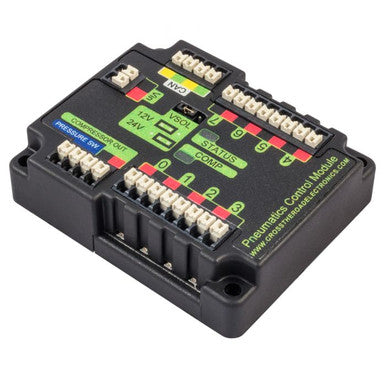

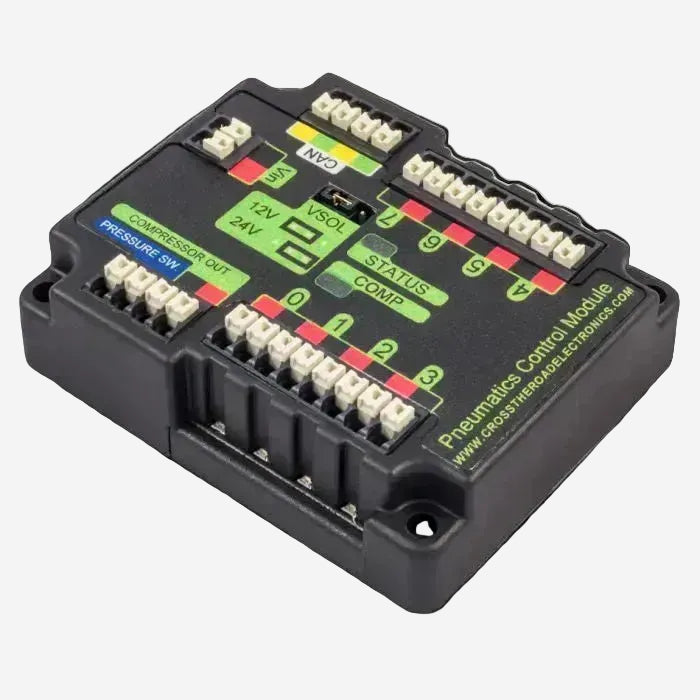

    Pneumatic Control Module

    The Pneumatic Control Module provides an easy all-in-one interface for pneumatic components.

    The Pneumatic Control Module provides an easy all-in-one interface for pneumatic components. Includes compressor control (replaces a Spike H-Bridge Relay) All commands run through CAN Bus Designed to work with the roboRIO FRC control system



    Inputs CAN Bus
    12V Input (from PDP)
    Pressure Switch Input
    Outputs (8) Solenoid Output
    (1) Compressor DC Out (12V)

     Solenoid

    Selection

    		 "VSOL" jumper allows teams to select the use of either 12V or 24V systems

    Product Videos

    Custom Field

    Software /software
    Hardware User Manual /content/user-manual/PCM%20User%27s%20Guide.pdf
    CAD & Drawings /content/cad/PCM_CAD.zip
    Firmware https://github.com/CrossTheRoadElec/Phoenix-Releases/blob/master/ctr-device-firmware.zip?raw=true
