CAN Bus & Power Cable Kit
CAN Bus & Power Cable Kit
SKU:22-678087
Regular price
$9.99 USD
Regular price
Sale price
$9.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

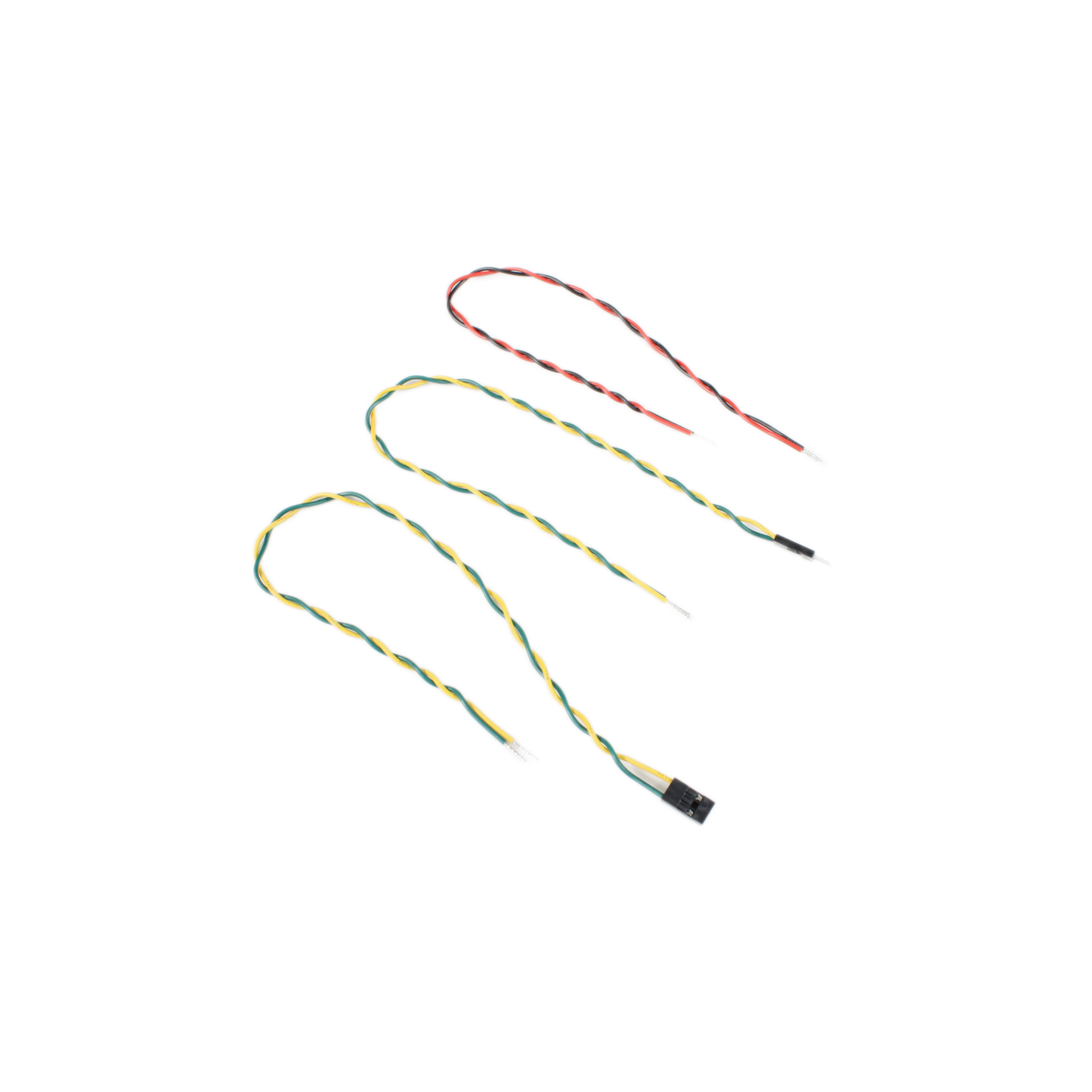

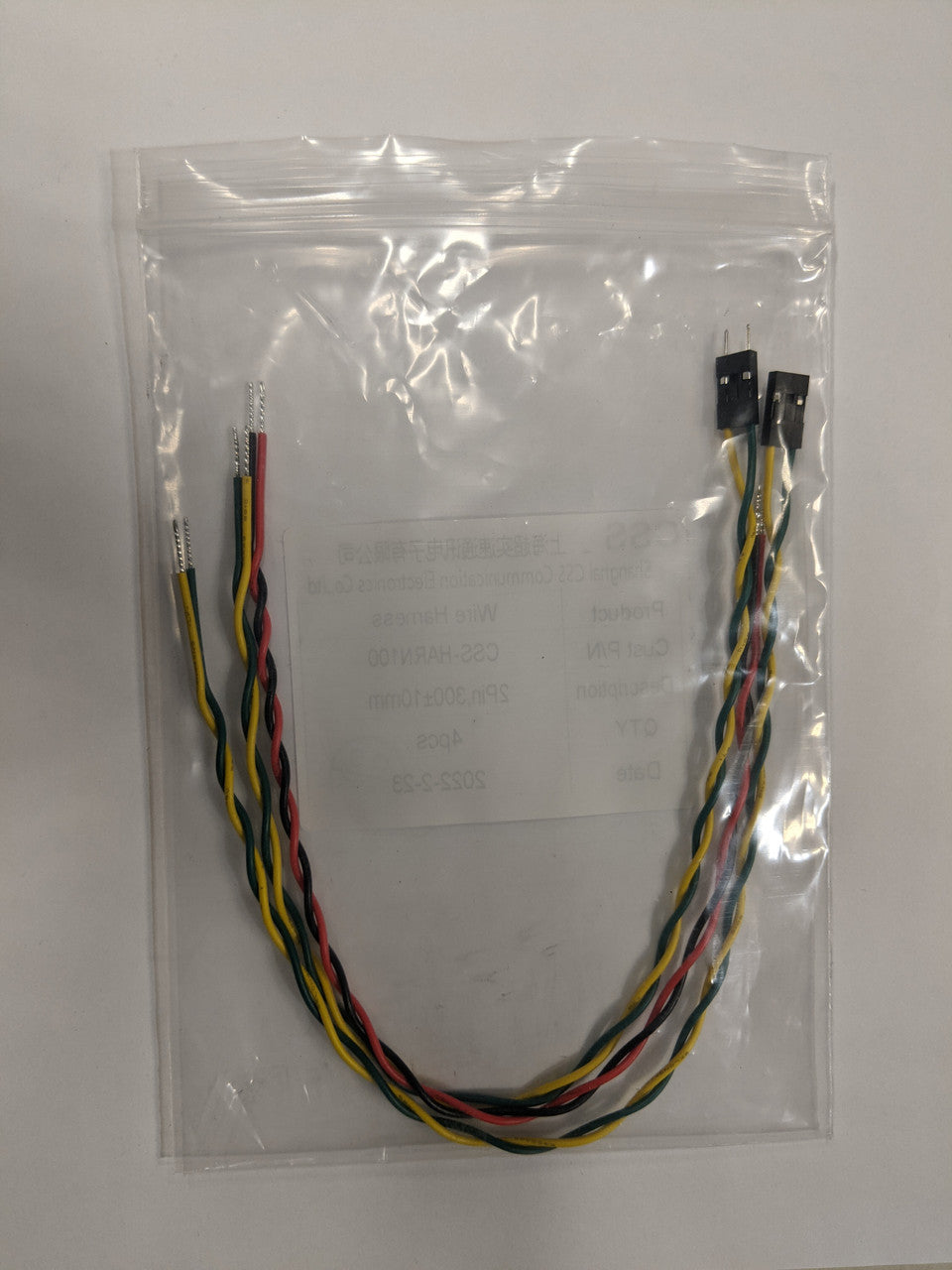

The CAN Bus & Power cable set includes the following twisted cables:
| Cable Colors | AWG | Cable Length | End 1 | End 2 |
| Red & Black | 22 & 22 | 12" | ~3/8" Stripped & Tinned Leads | ~3/8" Stripped & Tinned Leads |
| Yellow & Green | 22 & 22 | 12" | ~3/8" Stripped & Tinned Leads | Male 0.1" spaced 3-pin connector (wires to outside, no middle pin) |
| Yellow & Green | 22 & 22 | 12" | ~3/8" Stripped & Tinned Leads | Female 0.1" spaced 3-pin connector (wires to outside, no middle pin) |
The tinned leads are perfect for quickly and easily soldering to a CANcoder, CANifier, or other solder-ready CTRE products. Alternatively, the leaded ends can be plugged directly into the Weidmuller connectors featured on many of our products like the CANivore, Hero Development board, and more.
The contents of this wiring kit are included and pre-soldered in the Wired CANcoder product (22-676768).
