CANcoder

CANcoder

SKU:22-676768

In stock

Regular price $89.99 USD
Regular price Sale price $89.99 USD
Sale Sold out
Shipping calculated at checkout.

NOTE: Some Fall 2022 Units have a housing bottom with a tab that is too long. See Section 6.1 of the CANcoder User's Guide for the recommended fix.

TIP: CANcoder can be used with Phoenix Pro!

The CANcoder® is the next evolution in the line of CTRE magnetic encoder products. As its name implies, this product is a rotary magnetic encoder that communicates over the CAN bus. Supporting CAN FD and CAN 2.0, this product provides the same position and velocity with the same resolutions you've come to expect from the SRX Magnetic Encoder.

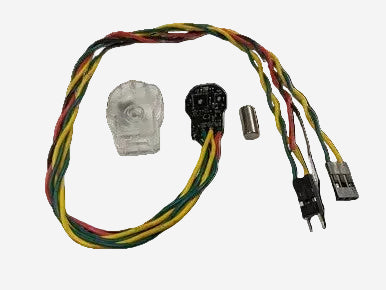

CANcoder is available both in Standard (no wires attached to the PCB) and Wired (wires pre-soldered to the PCB) versions.

Wired CANcoder® Specifications

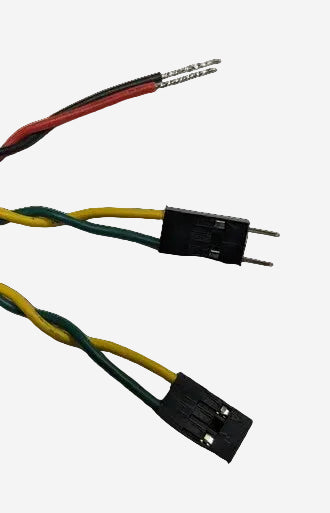

The wired version of this product comes with power & CAN wires already soldered to the board. There are three sets of twisted pairs soldered to the board (1 for power and 2 for CAN bus). More information on the wires can be found in the table below

Cable Colors Signal AWG Cable Length Exposed End
Red V+ 22 12" ~3/8" Stripped & Tinned Lead
Black Ground 22 12" ~3/8" Stripped & Tinned Lead
Yellow CAN High 22 12" 0.1" spaced 3-pin connector (wires to outside, no middle pin)
Green CAN Low 22 12" 0.1" spaced 3-pin connector (wires to outside, no middle pin)

Technical Specifications

Supply Voltage 6-16V
Current Draw <50 mA nominal, 60 mA max
ESD Protection 30kV
Recommended Min Wire Gauge 22AWG
