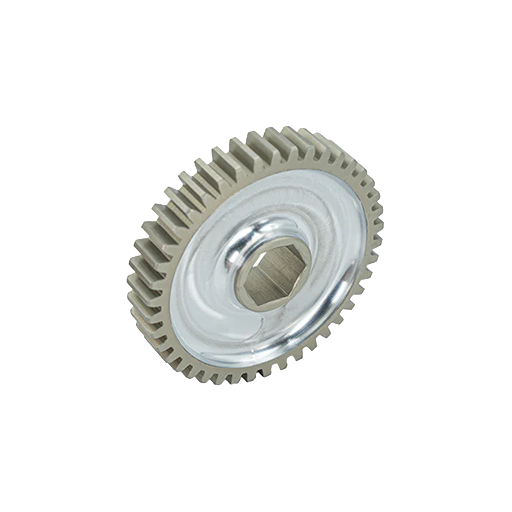

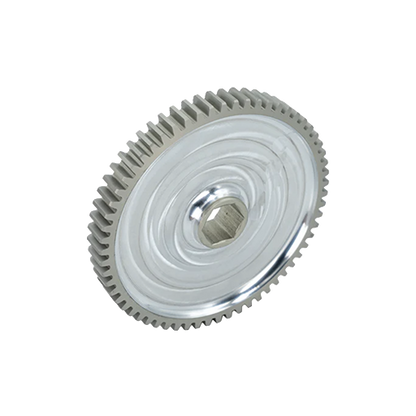

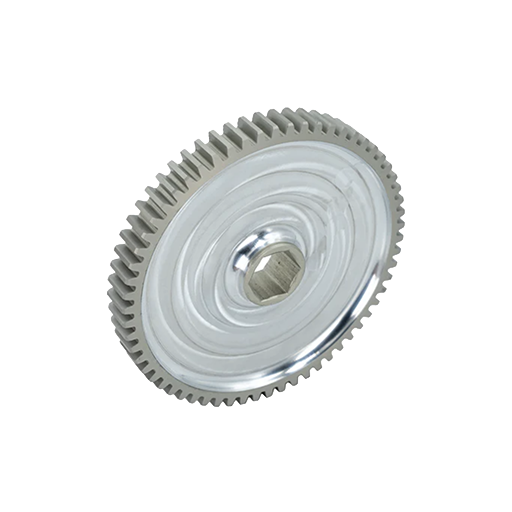

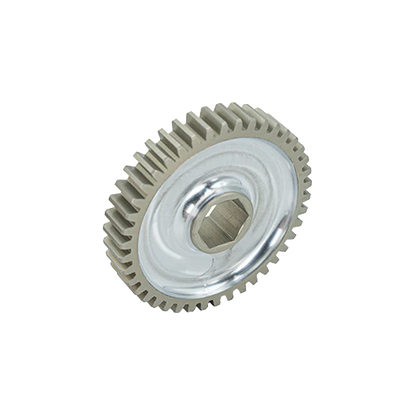

WCP 20DP Pocketed Aluminum Spur Gears – Lightweight Motor Gears for FRC & Robotics

The WCP 20DP Pocketed Aluminum Spur Gears deliver exceptional strength, precision, and weight savings for FRC drivetrains, manipulators, elevators, and mobile automation systems. Machined from durable 7075-T6 aluminum and finished with Type III hard anodize, these gears provide reliable performance under continuous load while significantly reducing overall system weight.

Each spur gear is pocketed to a .090 inch web thickness, achieving an average 50 percent weight reduction without compromising durability. These gears have been proven for years on elite FRC teams, including applications that demanded aggressive power transmission and fast acceleration.

With 20DP, a 14.5 degree pressure angle, and standardized 3/8 inch face widths, every gear in the lineup is fully interchangeable for fast ratio tuning and modular gearbox design. Available in 1/2 inch hex bores, these gears integrate directly with common hex shafts for simple assembly.

Key Features

• Manufactured from 7075-T6 aluminum
• Type III hard anodize for increased surface durability
• 20DP with 14.5 degree pressure angle
• 3/8" face width across all sizes
• Pocketed to a .090 inch web thickness for extreme weight savings
• 1/2 inch hex bores for hex shaft integration
• Hex bore is clocked on gears with notches on the nub
• Wide tooth count selection for rapid gearing optimization
• Overall width: 0.500 inch


Benefits for Robotics, FRC and Mobile Automation Products

• Significant weight reduction supports faster acceleration and improved robot maneuverability
• Compatible with FRC drivetrains, shooters, climbers, and custom gearboxes
• Standardized geometry simplifies ratio changes during prototyping
• Proven reliable in high torque, high speed competitive robotics
• Lightweight design enables teams to reallocate weight to mechanisms and end effectors
• Makes advanced drivetrain and gearbox designs accessible for teams of any experience level

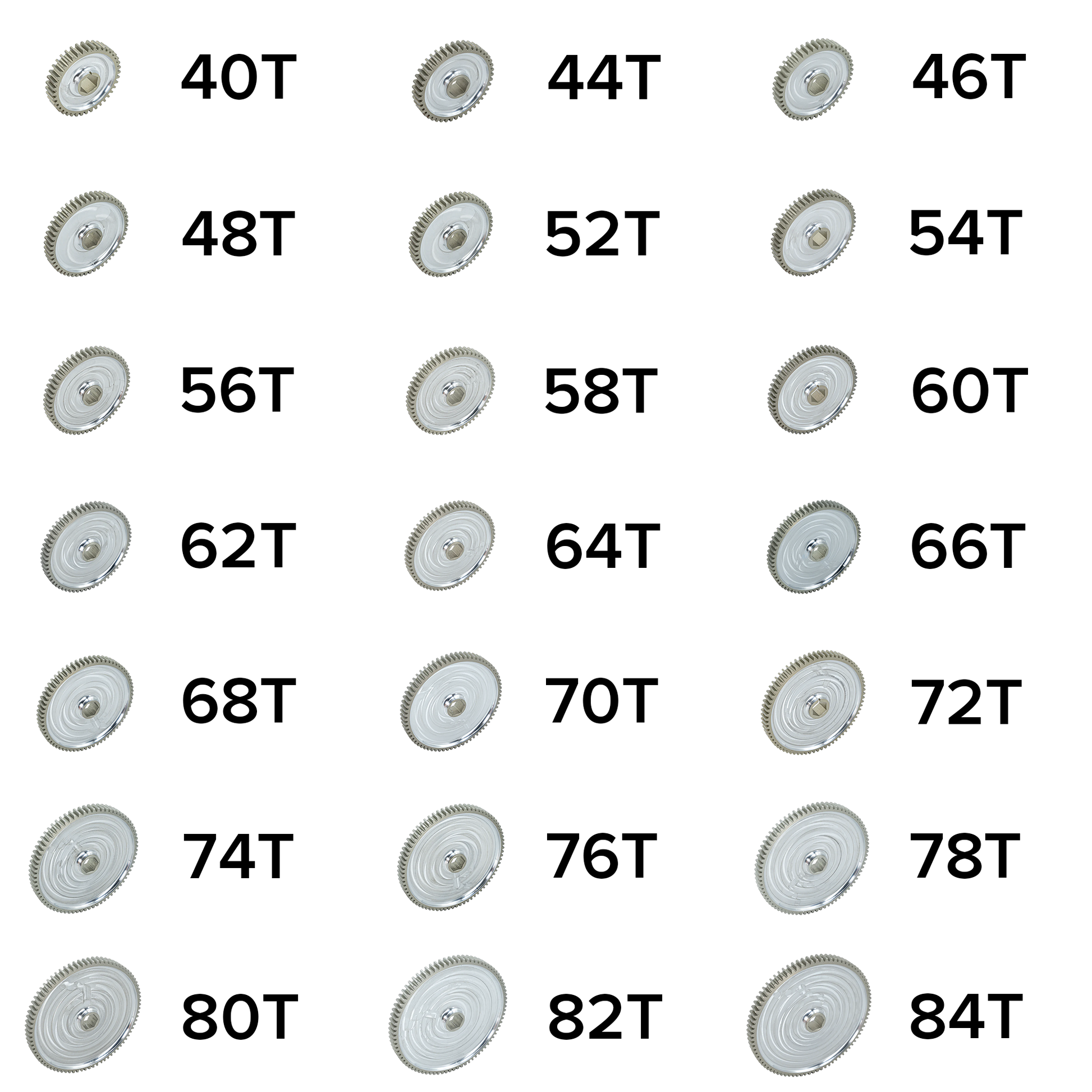

Available Variants

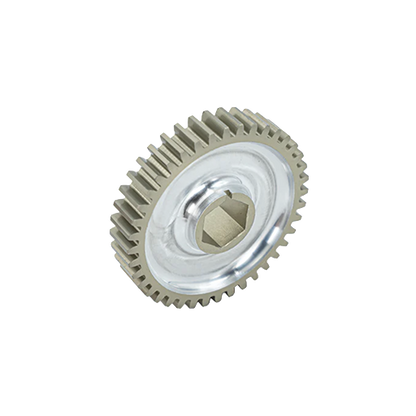

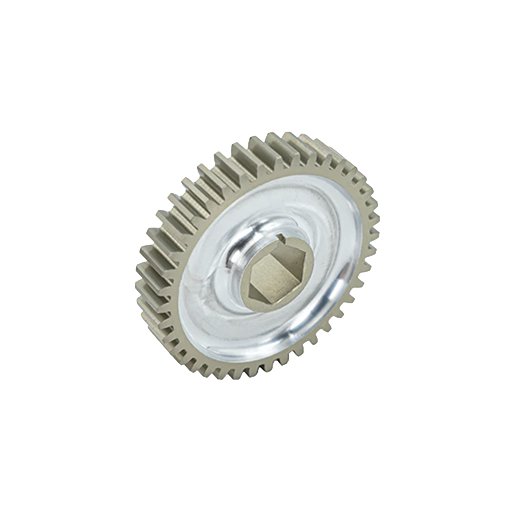

• 40t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

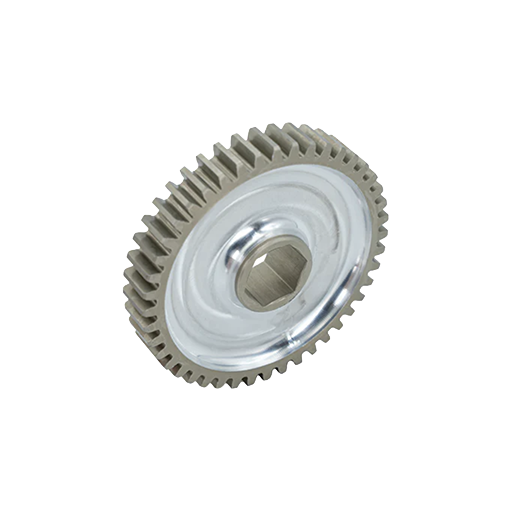

• 44t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

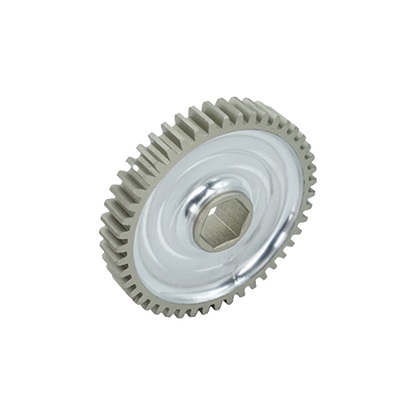

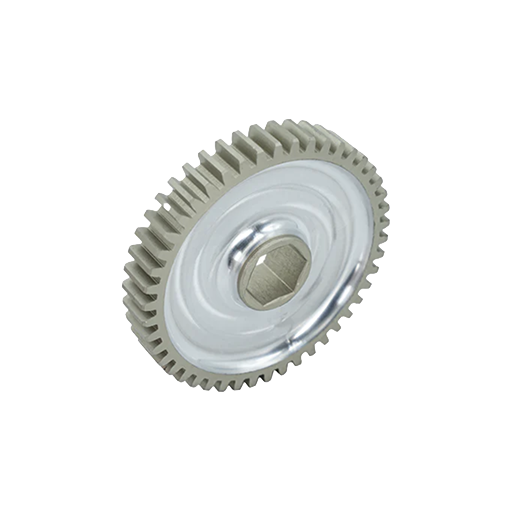

• 46t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

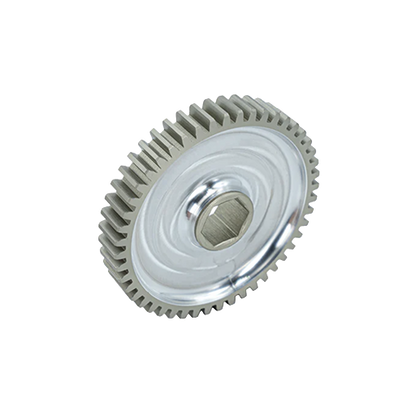

• 48t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

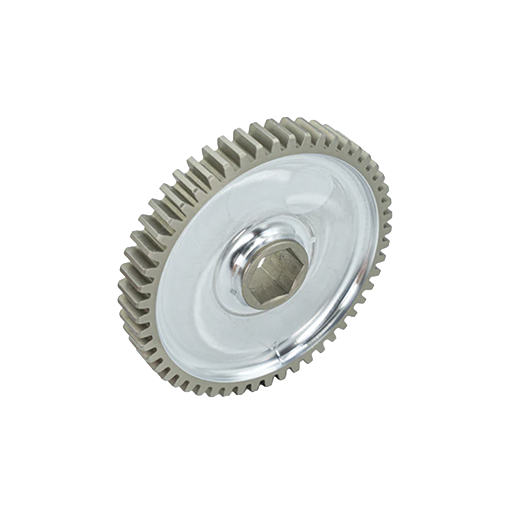

• 52t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

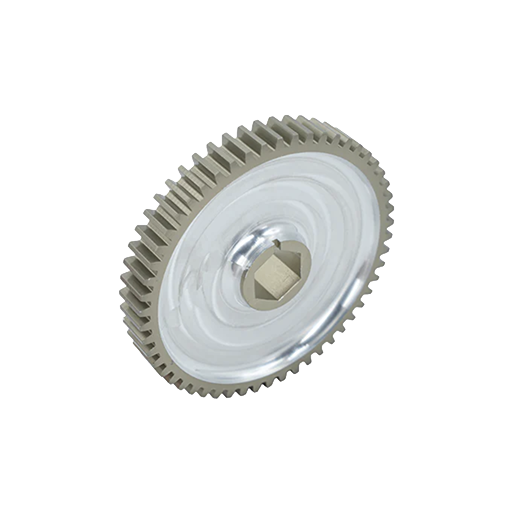

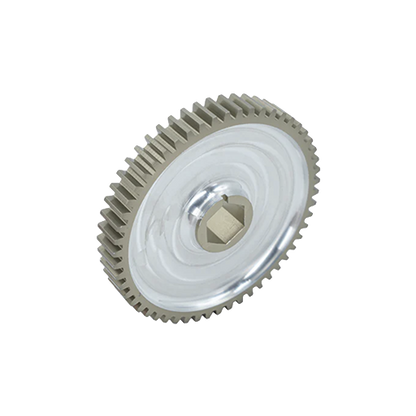

• 54t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

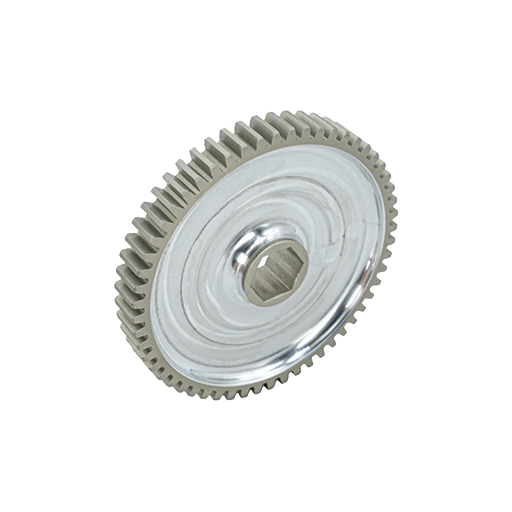

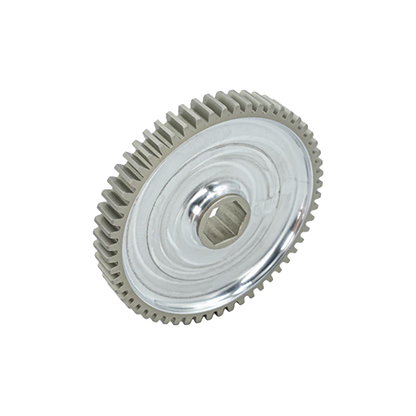

• 56t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

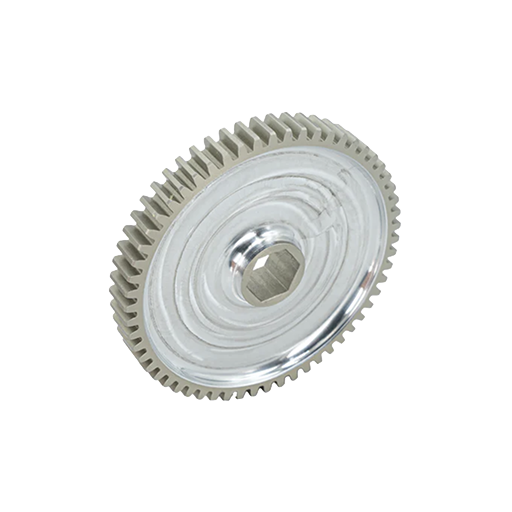

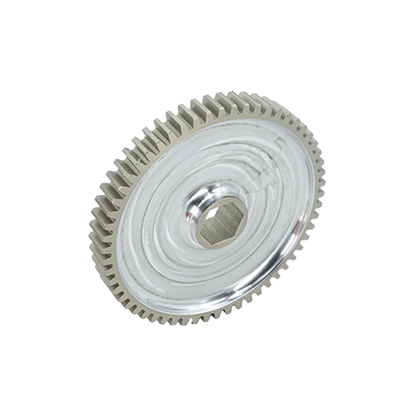

• 58t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

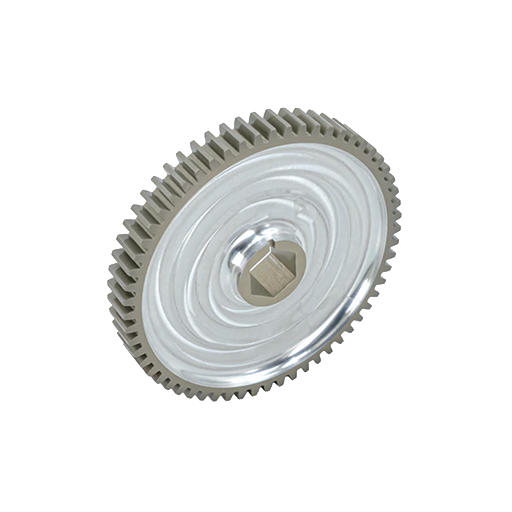

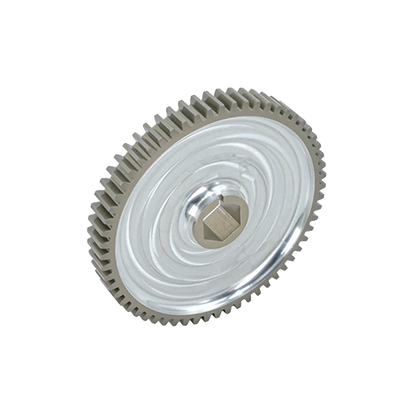

• 60t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)
• 62t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

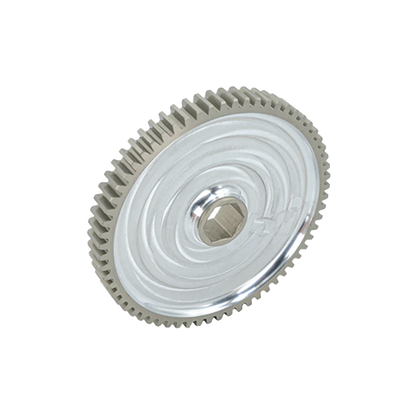

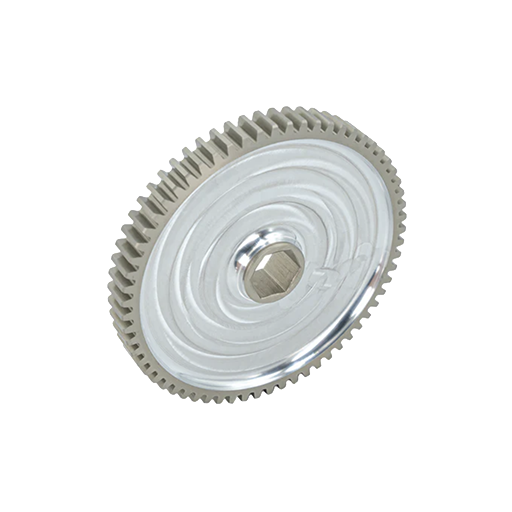

• 64t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

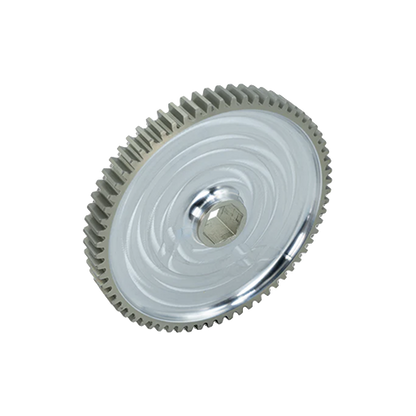

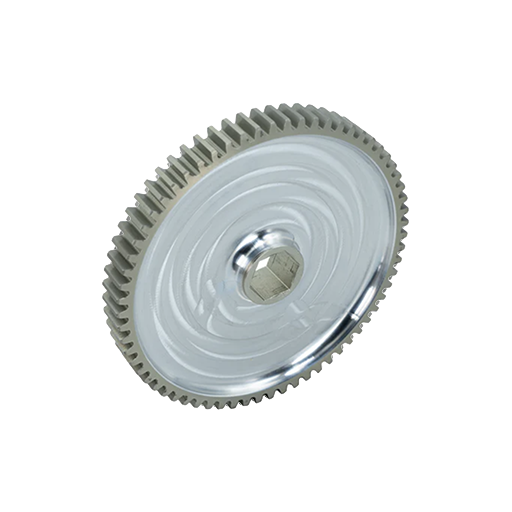

• 66t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

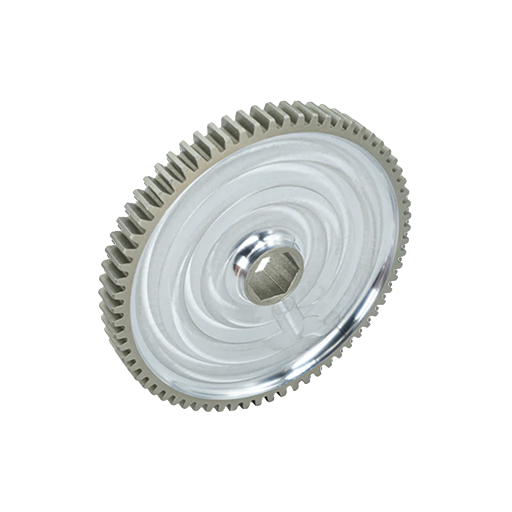

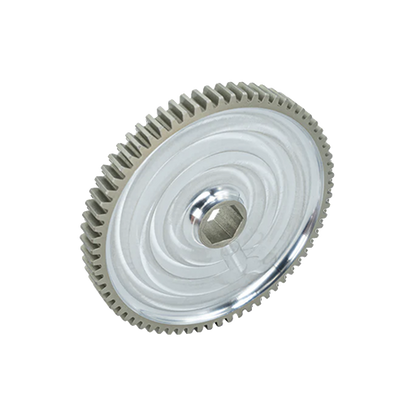

• 68t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

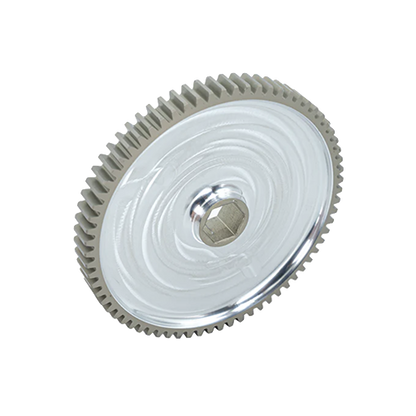

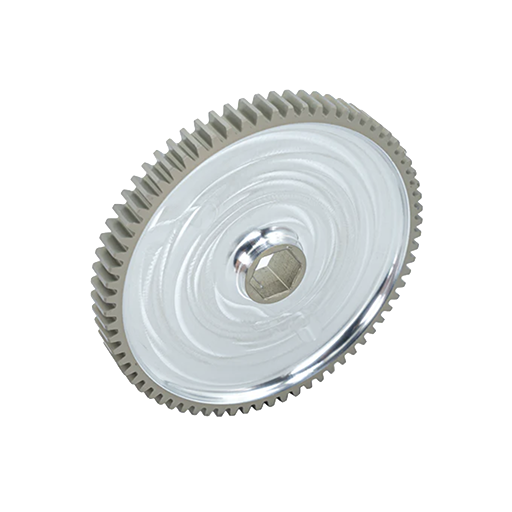

• 70t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

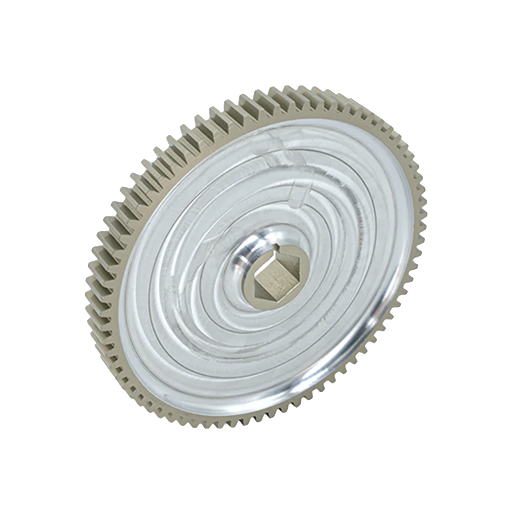

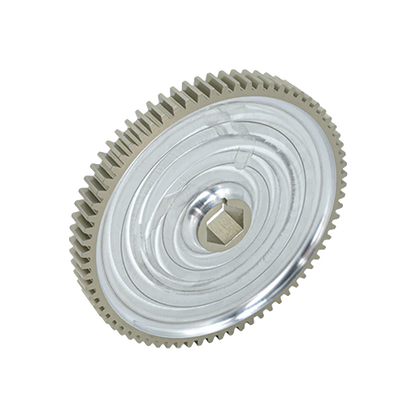

• 72t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

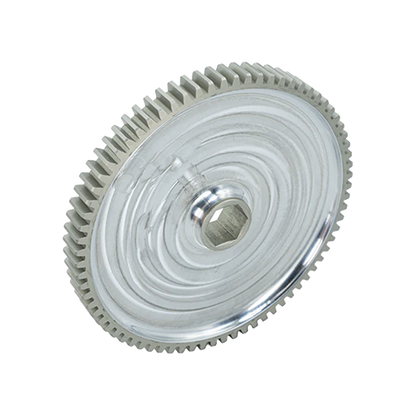

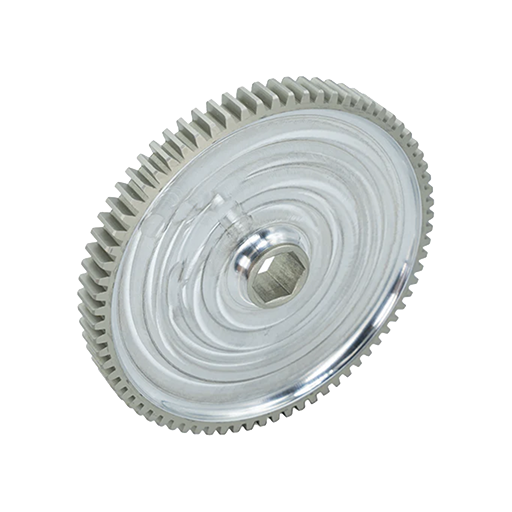

• 74t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

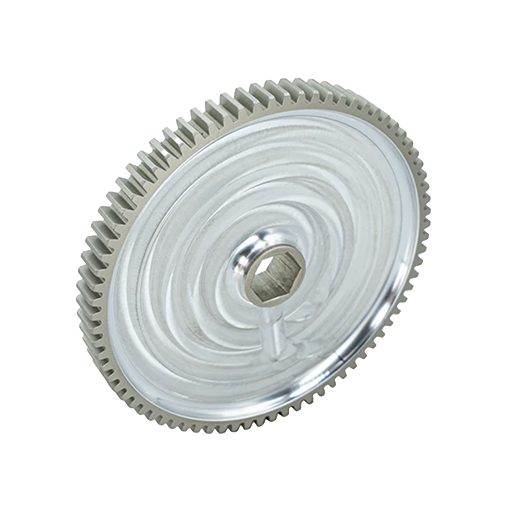

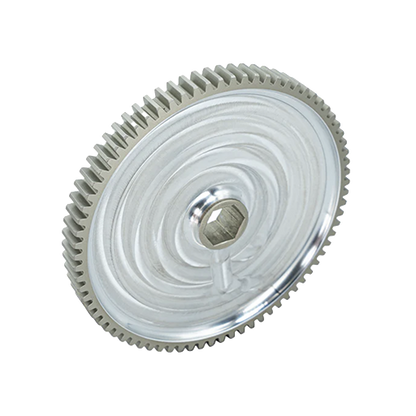

• 76t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

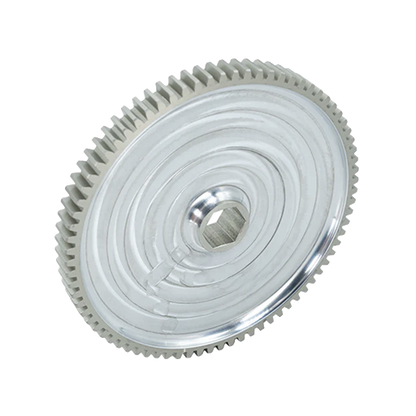

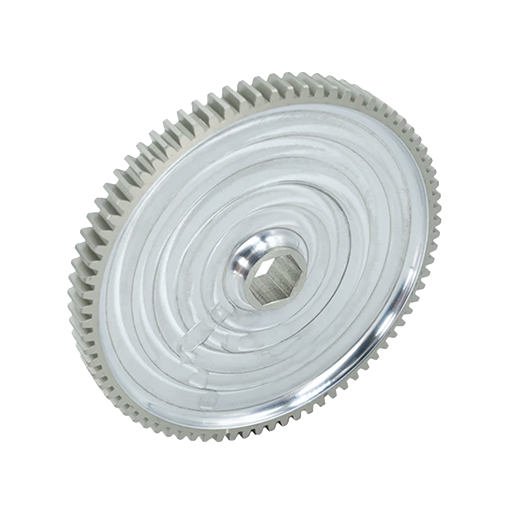

• 78t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

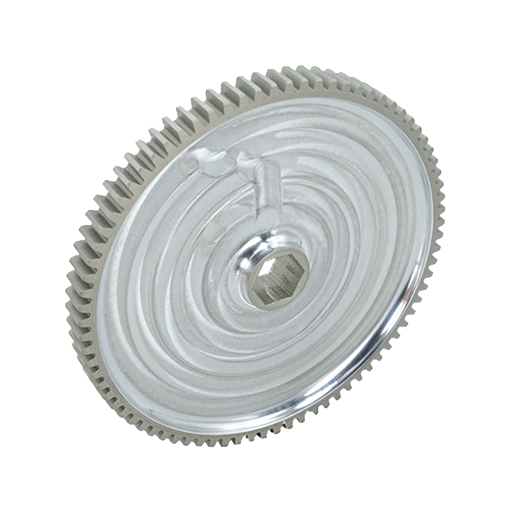

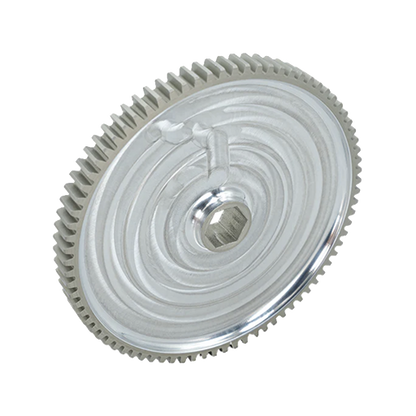

• 80t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

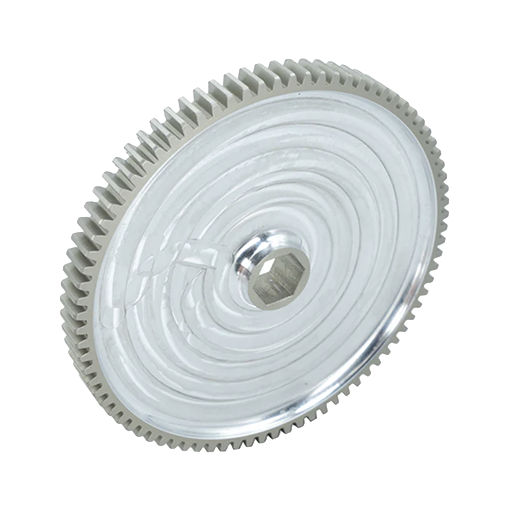

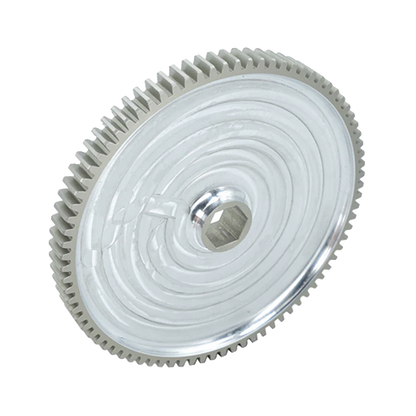

• 82t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)

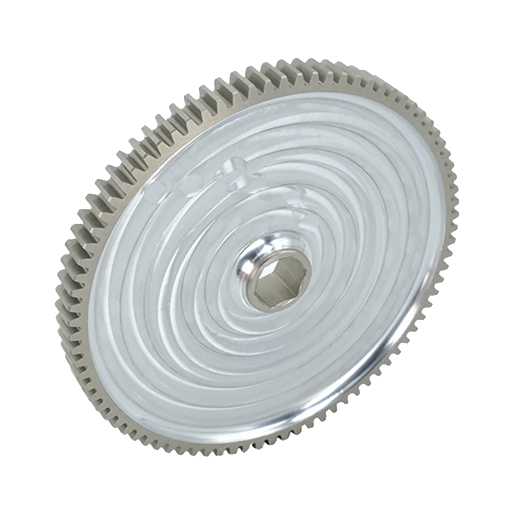

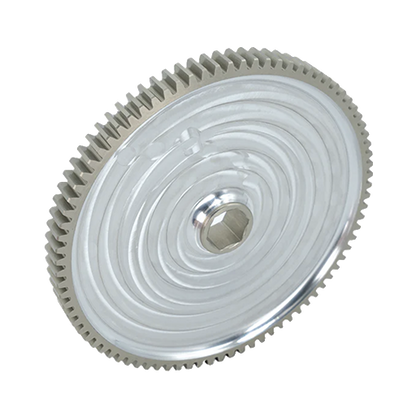

• 84t Pocketed Aluminum Spur Gear (20 DP, 1/2" Hex Bore)
