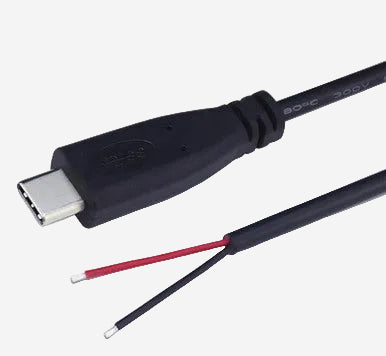

USB Type C Wire Breakout

Key Features

• Direct 5V Power Delivery: Delivers 5V power over a 22 AWG two-wire breakout configuration using standard red (+USB) and black (-USB) leads.
• USB Type-C Connector Interface: Features a 0.3 meter (1 ft) cable length terminated with a standard USB Type-C Male connector.
• CANdle® Compatibility: Specifically designed for use with the CTRE CANdle® to supply power to USB Type-C hardware in FRC robotics and electronics applications.
• Exposed Wire Termination: Open-wire leads enable custom wiring, soldering, or terminal block connections.

Product Benefits

• Simplified Hardware Powering: Provides a direct, reliable way to power USB Type-C devices from a 5V power source without custom step-down regulators or adapters.
• Compact Wire Management: The 1-foot length minimizes excess wiring clutter and keeps power runs neat inside the robot chassis.
• Seamless CANdle® Integration: Works directly alongside the CANdle® to supply power to onboard peripherals.

Technical Specifications

• Cable Length: 0.3 meters (1 ft)
• Wire Gauge: 22 AWG
• Connector 1: USB Type-C Male
• Terminal Leads: Bare/Exposed Red (+USB / 5V) and Black (-USB / Ground) wires
• Output Voltage: 5V
• Target Compatibility: CANdle® power systems, FRC robotics, and general electronics
• Primary Use Case: Powering 5V USB Type-C devices via direct wire connection
