PlanetaryX 180 Degree Gearbox Conversion Kit

The PX 180 Degree Gearbox is a compact mounting solution for the PlanetaryX that brings the motor alongside the gearbox instead of extending straight out from it.

The PX 180 Degree Gearbox is a single plate that bolts directly to the PlanetaryX Input Block and redirects power through either a belt and pulley or a gear pair. This layout can reduce the overall package length and provides more flexibility when packaging mechanisms in tight spaces.

Features

• 2.552" Center-to-Center spacing
• Supports 2" and 1.375" motor bolt circles
• Direct Mounting to the PlanetaryX Input Block
• Compatible with Standard 1/2" Pitch Spacing and WCP Bearing Blocks
• Folds the motor back alongside the PlanetaryX
• 2.552" center-to-center spacing
• Supports belt and gear-driven configurations
• Mounts to tubing using WCP Bearing Blocks on the 1/2" Pitch Spacing Standard
• Six #10-32 clearance holes for mounting to the PlanetaryX
• Two additional #10-32 tapped mounting holes

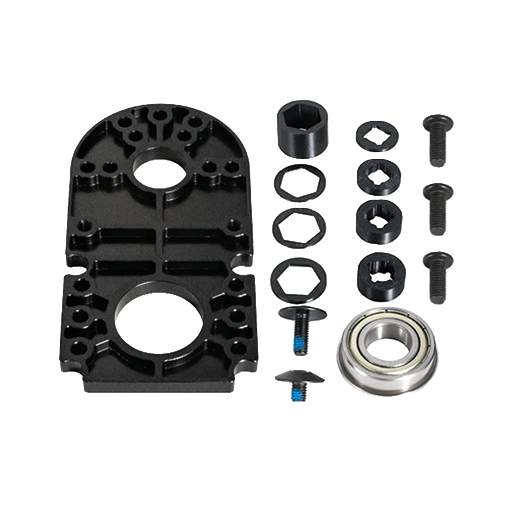

Kit Includes:

Belt or Gear Drive

The 2.552" center-to-center spacing supports both belt-and-pulley and gear configurations.

For gear-driven setups, the spacing is designed around a 102T gear configuration. Belt-and-pulley setups can also be used at the same center spacing, allowing the drive method to be selected based on the needs of the mechanism.

Mounting

The PX 180 Degree Gearbox bolts directly to the PlanetaryX Input Block. It can also be integrated into standard FRC structures using WCP Bearing Blocks and the 1/2" Pitch Spacing Standard.

Specifications

The PX 180 Degree Gearbox is designed for applications where motor placement and overall package length are important. Pair it with PlanetaryX to reposition the motor and build a compact gearbox package around the available space on your robot.
