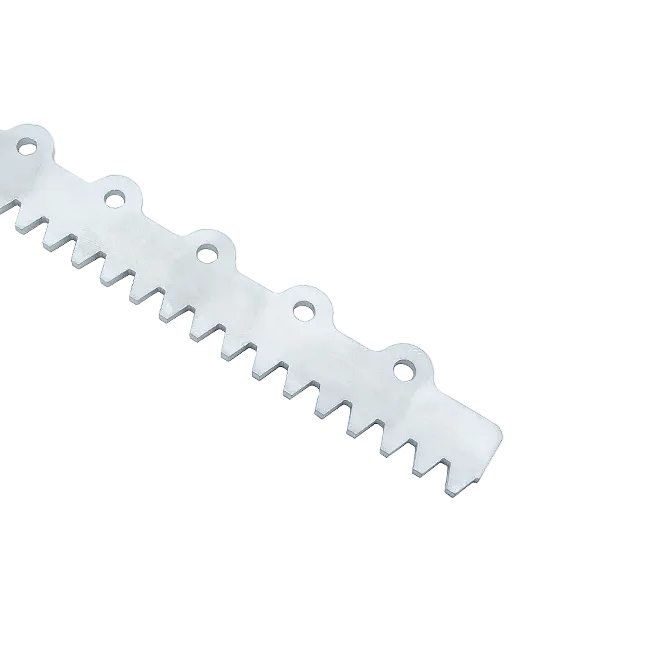

WCP 10DP Aluminum Gear Rack

The 10DP Aluminum Gear Rack is designed to support precise and controlled powered linear motion in FRC robot applications. This gear rack provides positional control that offers an alternative to pneumatic systems and cable operated linear motion. Manufactured from 6061-T6 aluminum, it balances low weight with structural strength for use in robotic mechanisms.

This gear rack features a 10DP tooth pitch and a length of 35.5 inches. The design allows racks to be stacked end to end for extended travel distances, and multiple racks can also be stacked to increase gear face width. This makes the system adaptable for a wide range of linear motion designs where repeatable and controlled movement is required.

Key Features & Specifications

• Gear Type: Linear gear rack
• Tooth Pitch: 10DP
• Length: 35.5 inches
• Material: 6061-T6 aluminum
• Mounting: #10-32 clearance holes
• Stackable design for extended travel and increased gear face width

Product Benefits

• Provides precise and controlled linear motion for robotic systems
• Offers an alternative to pneumatic and cable operated linear motion
• Lightweight aluminum construction supports efficient robot designs
• Stackable length allows extended travel distances
• Stackable width enables increased gear face engagement

Design Notes

A sample assembly concept combines the gear rack with 2" x 1" tubing and an Elevator Inline Bearing Block to achieve linear motion.
