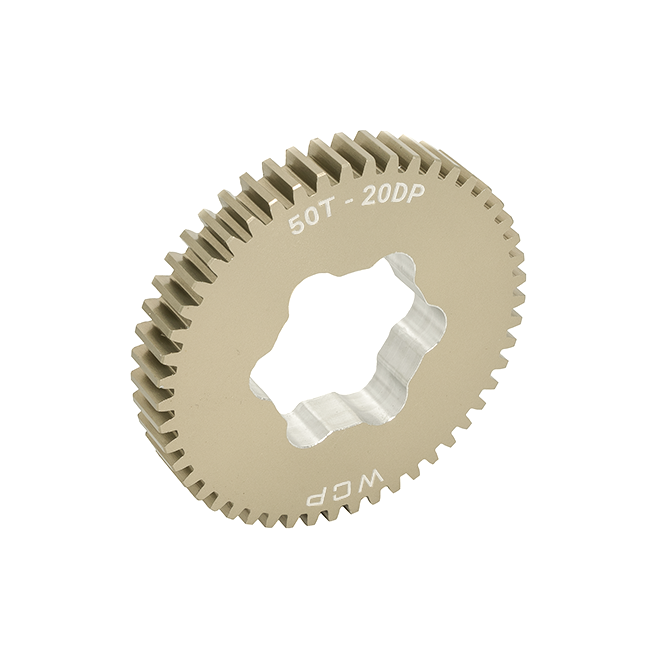

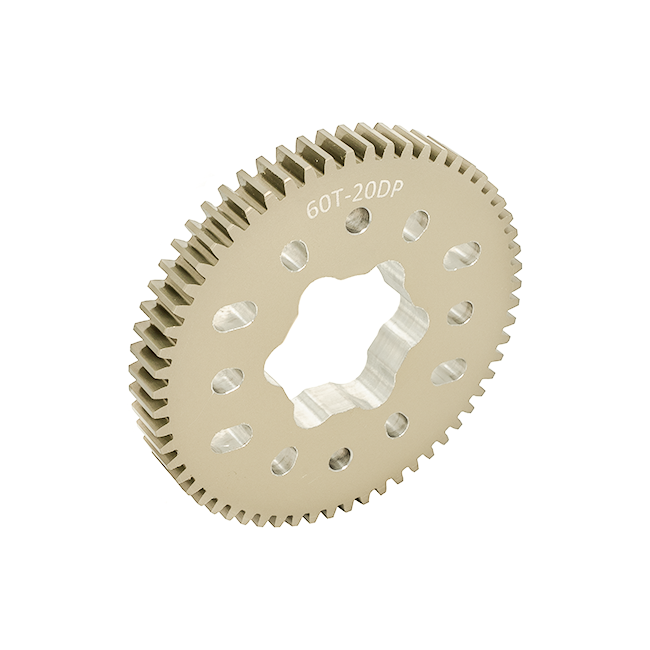

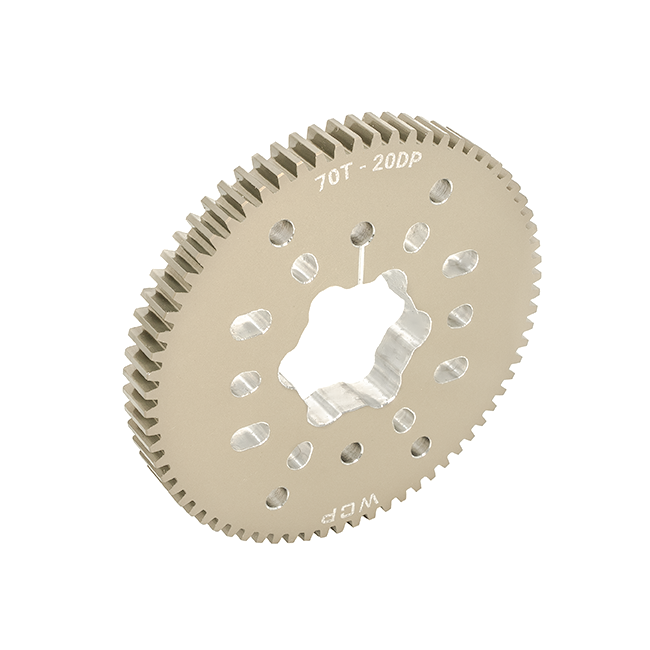

WCP Aluminum SplineXL Spur Gears – 20DP Lightweight Gearing for Robotics
WCP Aluminum SplineXL Spur Gears – 20DP Lightweight Gearing for Robotics
SKU:WCP-1199
In stock
Couldn't load pickup availability
CTR Electroncis offers an assortment of WCP gear types, chosen to provide the greatest versatility of gearing options to users. Sizes were specifically chosen to provide a wide spread of ratio options useful for FRC designers. Larger size gears are available so designers can accomplish their entire reduction in a single stage where otherwise they would have used more than one!
All WCP gears are 20DP with 14.5 degree pressure angle, and have the same overall width. This means it is easy to interchange gears in your design to change a ratio without modifying the overall system; true versatility.
- SplineXL bore with MotionX pattern for use on SplineXL tubes and MotionX Accessories
- Made from 7075-T6 aluminum with a teflon infused ceramic coating
- Overall width 0.500"
These gears are well-suited for use in FRC drivetrains and mechanisms, as well as custom robotic systems where lightweight, high-strength single-stage gearing is required.
