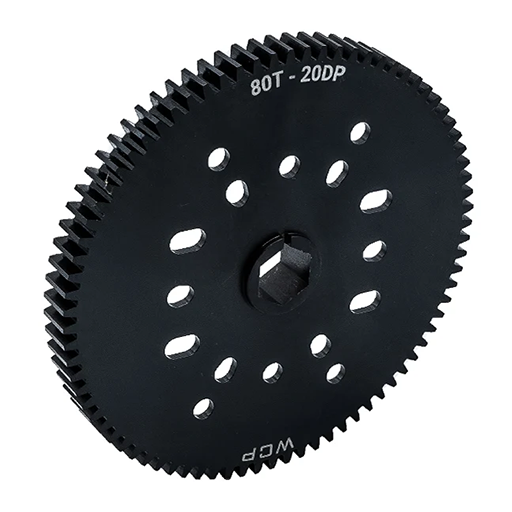

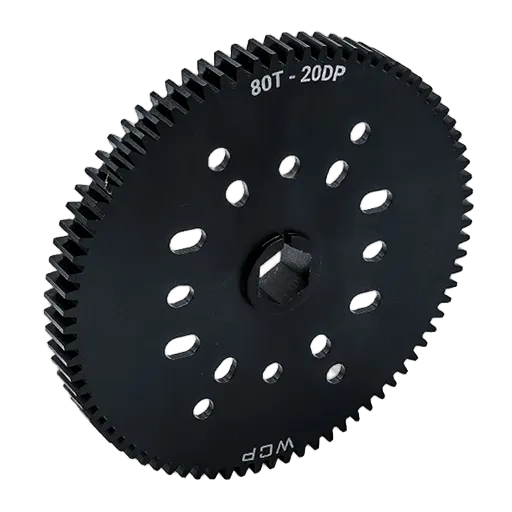

80t Pocketed Steel Spur Gear with MotionX (20 DP, 1/2" Hex Bore)

WCP Spur Gears provide a wide selection of gearing options designed specifically for FRC applications. These gears feature a wide spread of ratio options, allowing designers to achieve their desired speed or torque reductions. Larger gear sizes enable complete reduction stages in a single step, eliminating the need for multi-stage configurations.

All WCP gears are manufactured with a 20 DP pitch, a 14.5° pressure angle, and a consistent overall width. This standardized profile allows for easy swapping of gears within existing setups to alter gear ratios without requiring modifications to the overall mechanical assembly.

Key Features & Specifications Product Type:

• Pocketed Steel Spur Gears with MotionX
• Diametral Pitch: 20 DP
• Pressure Angle: 14.5°
• Bore: 1/2" Hex Bore (for use on hex or thunderhex shafts)
• Material: 4140 Steel
• Overall Width: 0.500"
• Clocked hex bore on laser engraved gears
• Pocketed design

Benefits for Robotics, FRC & Mobile Automation

• Versatile Gearing & Ratios: Wide spread of ratio options enables single-stage reductions for FRC designs
• Durable Construction: Built from 4140 steel with a 14.5° pressure angle for reliable operation
• Flexible Integration: 1/2" hex bore fits hex or thunderhex shafts across various robot designs
• Interchangeable Profile: Standardized width and 20 DP pitch allow easy ratio swaps without modifying overall system width
• Trusted Brand: WCP (WestCoast Products) delivers consistent quality for robotics applications

Available Products

• WCP 52t Pocketed Steel Spur Gear with MotionX (20 DP, 1/2" Hex Bore) (WCP1433)
• WCP 54t Pocketed Steel Spur Gear with MotionX (20 DP, 1/2" Hex Bore) (WCP1434)
• WCP 80t Pocketed Steel Spur Gear with MotionX (20 DP, 1/2" Hex Bore) (WCP1437)
