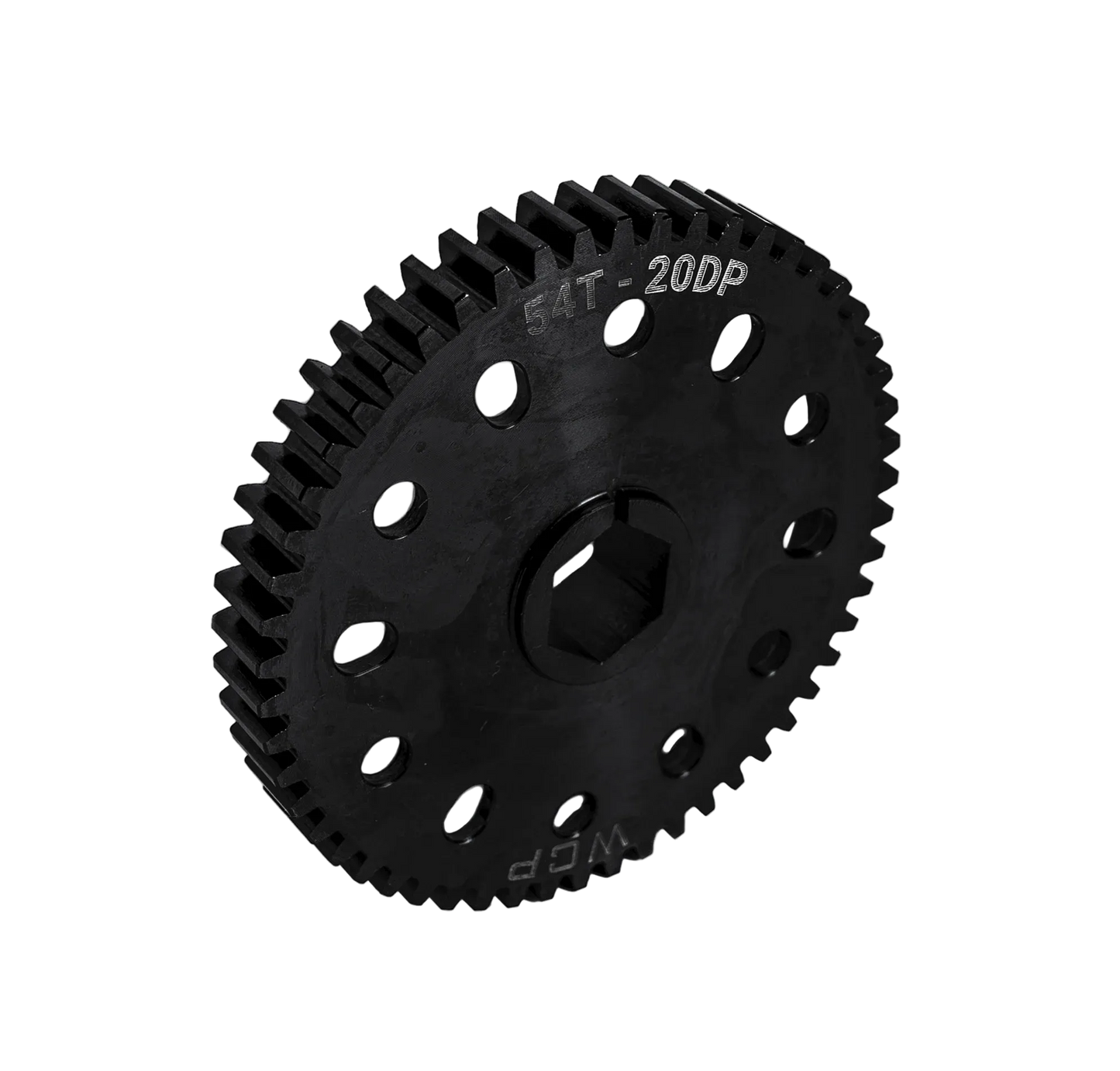

WCP 54t Pocketed Steel Spur Gear with MotionX (20 DP, 1/2" Hex Bore)

The WCP 54T Pocketed Steel Spur Gear with MotionX is designed to give robotic designers a wide range of ratio options within compact drivetrain and mechanism systems. As part of the WCP pocketed spur gear lineup, this larger gear size allows designers to achieve full gear reductions in a single stage where multiple stages might otherwise be required.

All WCP spur gears use a standardized 20DP tooth profile, a 14.5 degree pressure angle, and the same overall gear width. This consistent geometry allows gears to be easily swapped to adjust ratios without changing the surrounding mechanical design, supporting fast iteration and true system versatility.

Key Features & Specifications

• Tooth Count: 54 teeth
• Gear Type: Pocketed steel spur gear with MotionX
• Diametral Pitch: 20DP
• Pressure Angle: 14.5 degrees
• Bore: 1/2 inch hex
• Standardized Width: Matches all WCP 20DP spur gears

Benefits for Robotics & Automation

• Wide Ratio Options: Supports flexible gear ratio selection for drivetrain and mechanism design
• Single Stage Reduction Capability: Larger gear size enables full reductions in one stage when space allows
• Easy Ratio Changes: Common gear width and profile allow swaps without redesigning the system
• System Versatility: Integrates consistently across WCP 20DP spur gear configurations
