SKU:24-708883
In stock
Couldn't load pickup availability

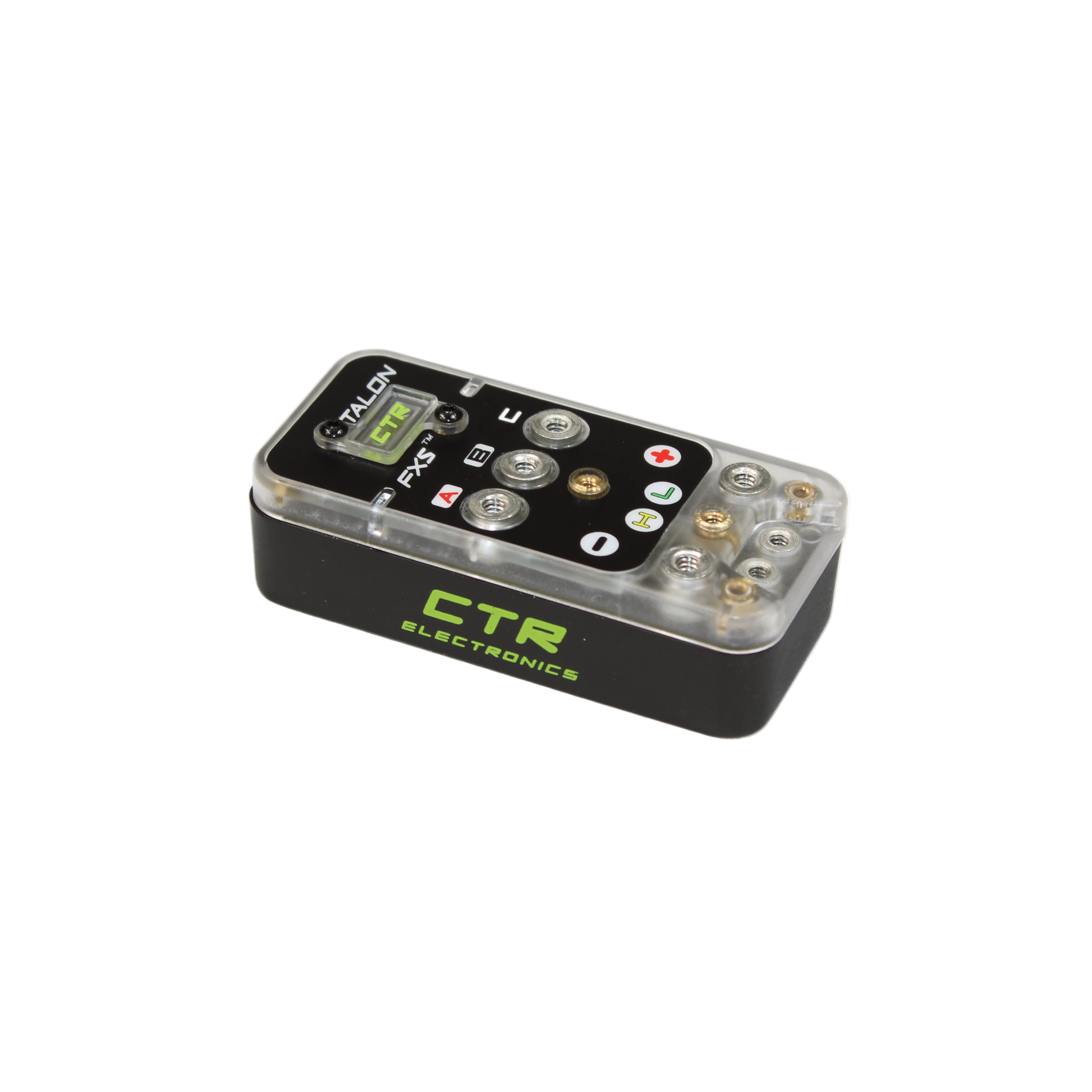

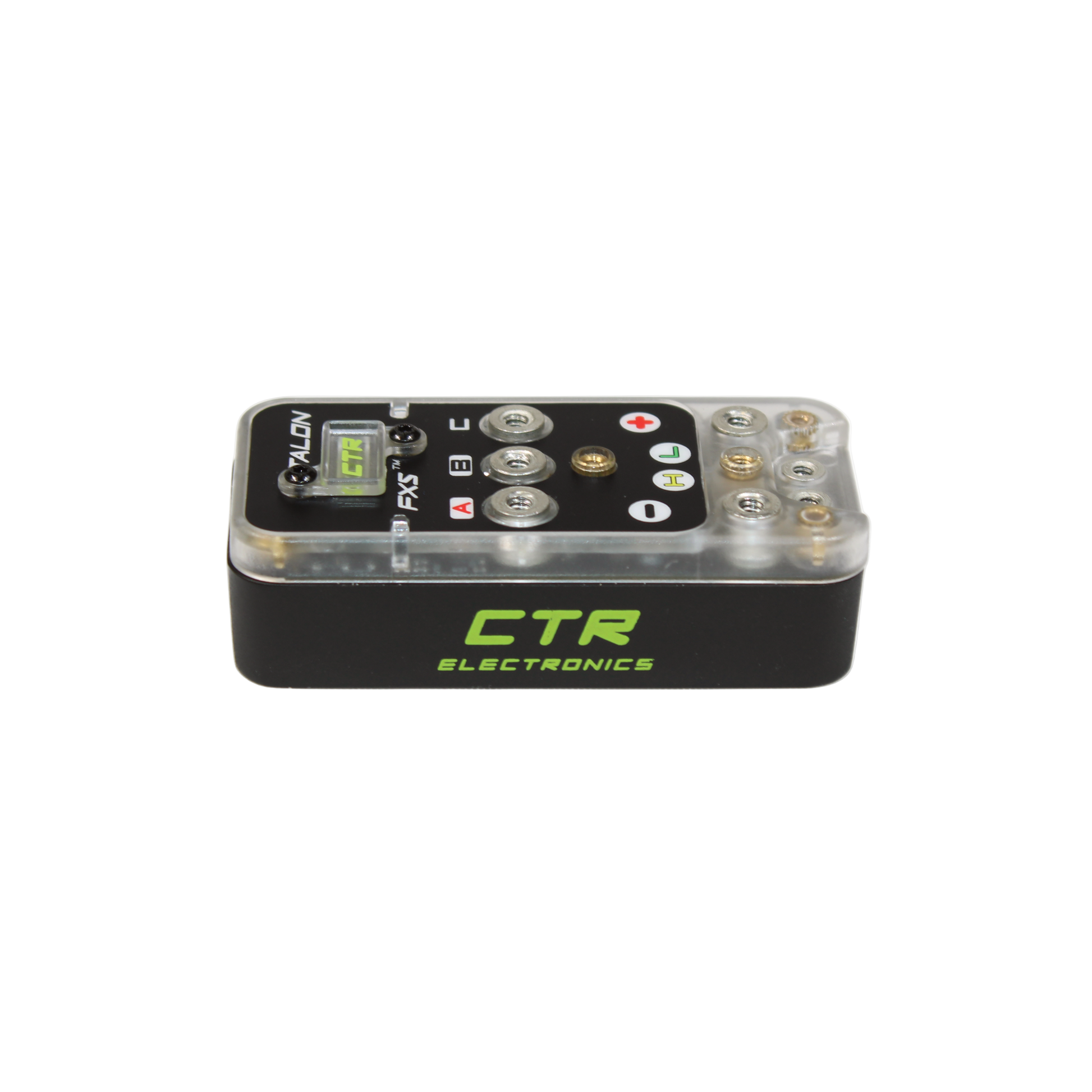

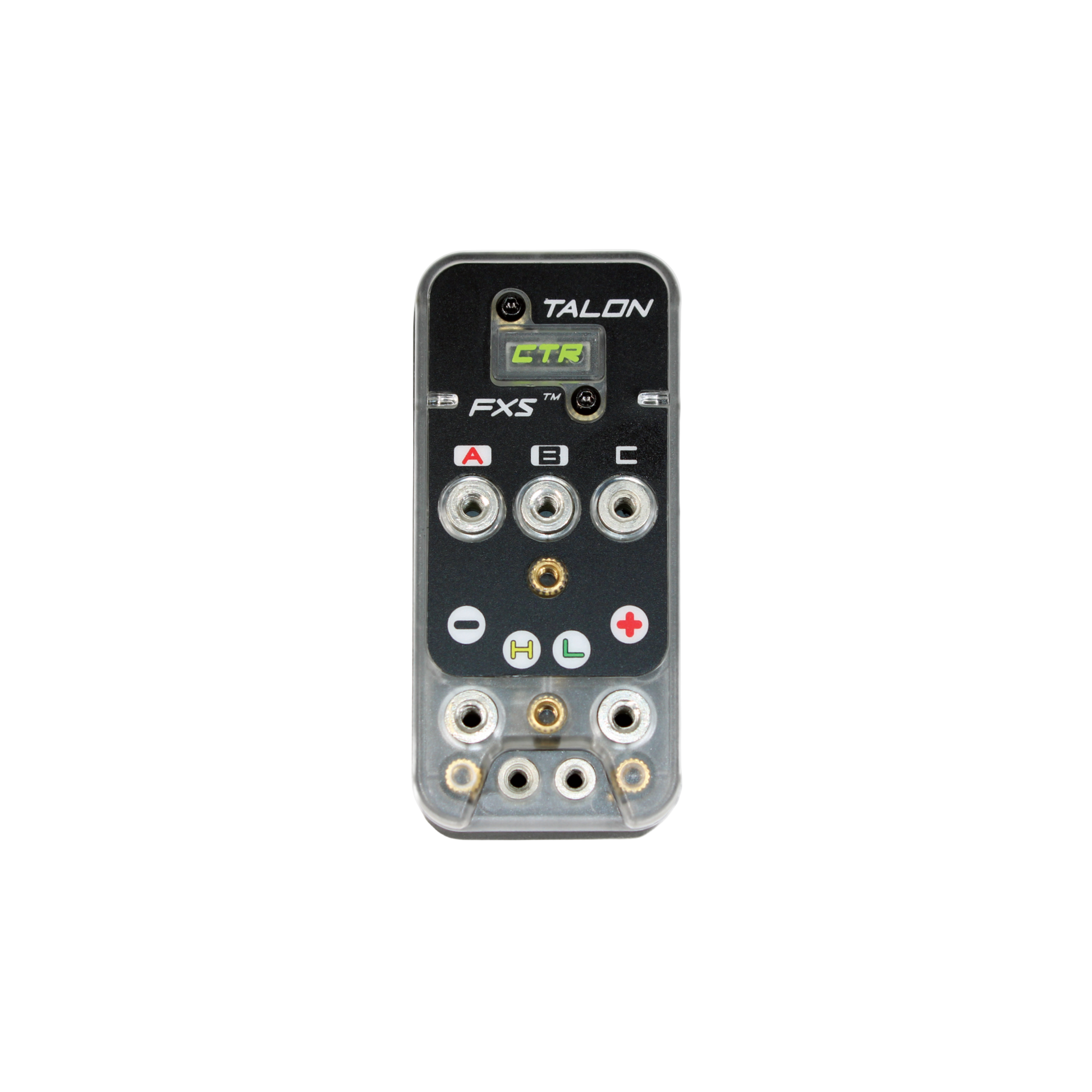

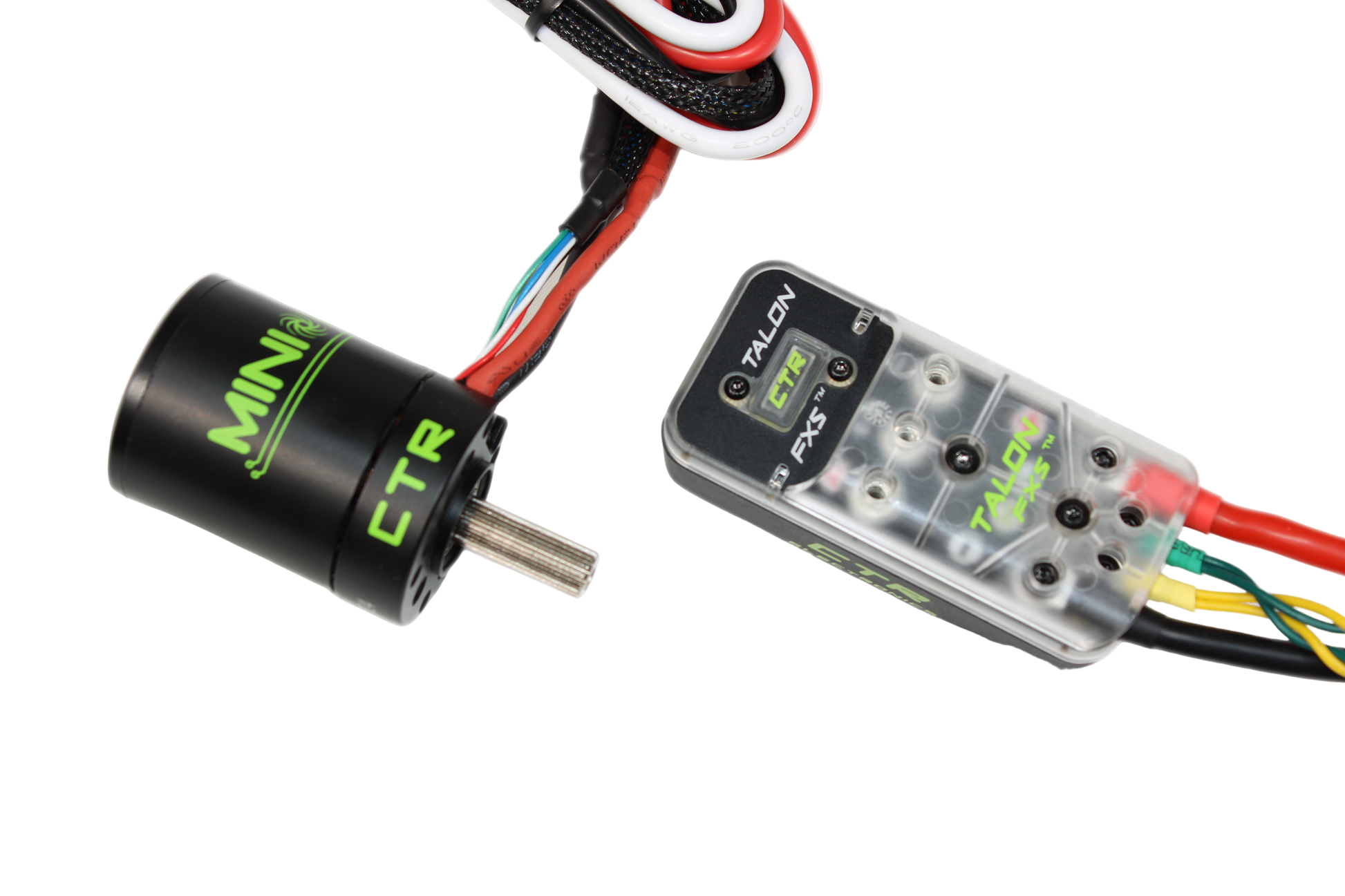

Introducing the Talon FXS™: A high-performance, standalone motor controller built for seamless integration with the CTR Electronics software ecosystem, including Phoenix Pro. While it's optimized for use with CTRE’s Minion brushless motor, Talon FXS™ also supports a wide range of third-party brushed and brushless motors, offering unmatched flexibility.
Whether you're using CTR Electronics motors or motors from other vendors, the Talon FXS™ delivers reliable, field-proven control and smooth commutation.
Talon FXS™also employs methods to reduce hall sensor velocity measurement noise and phase delay - a common problem with similar standalone motor controllers. Phoenix Pro users also benefit with “Advanced Hall Support” which can increase motor peak efficiency as high as an additional 2% percentage points and further reduce velocity measurement noise, making it ideal for velocity closed loop modes.
Enhance your motor control with the unparalleled flexibility and performance of the Talon FXS™.
Specs:
| Electrical | |
| Communication Protocols | PWM, CAN |
| Nominal Voltage | "Accommodates operating voltage up to 24V." |
| Min/Max Voltage | 6V - 24V |
| PWM Input Pulse (High Time) | 1 – 2 ms Nominal |
| PWM Input Rate (Period) | 2.9 – 100ms |
| CANbus Deadband | Configurable in Phoenix |
| PWM Deadband | 4% |
| Max Quadrature Edges Per Rotation (EPR) | 2,000,000,000 / Peak RPM |
| Max Quadrature RPM | 2,000,000,000 / EPR |

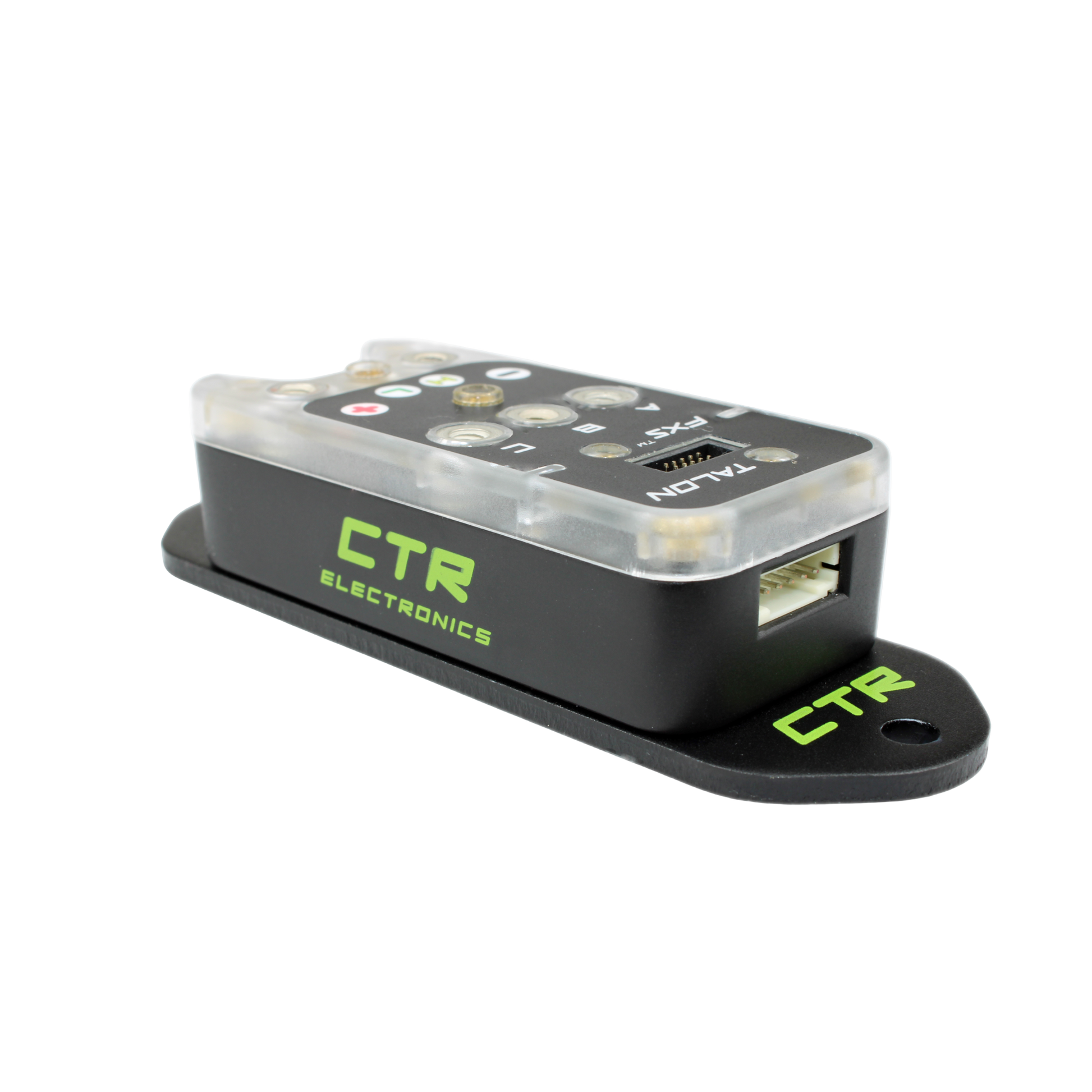

| Hardware | No Mounting Plate | With Mounting Plate |
| Width | 1.43 inches | 1.43 inches |
| Height | 1.16 inches | 1.29 inches |
| Length | 3.06 inches | 4.5 inches |
| Weight |
.25 lbs |
|
| Supported Motor Types | Brushed DC/Brushless DC | |

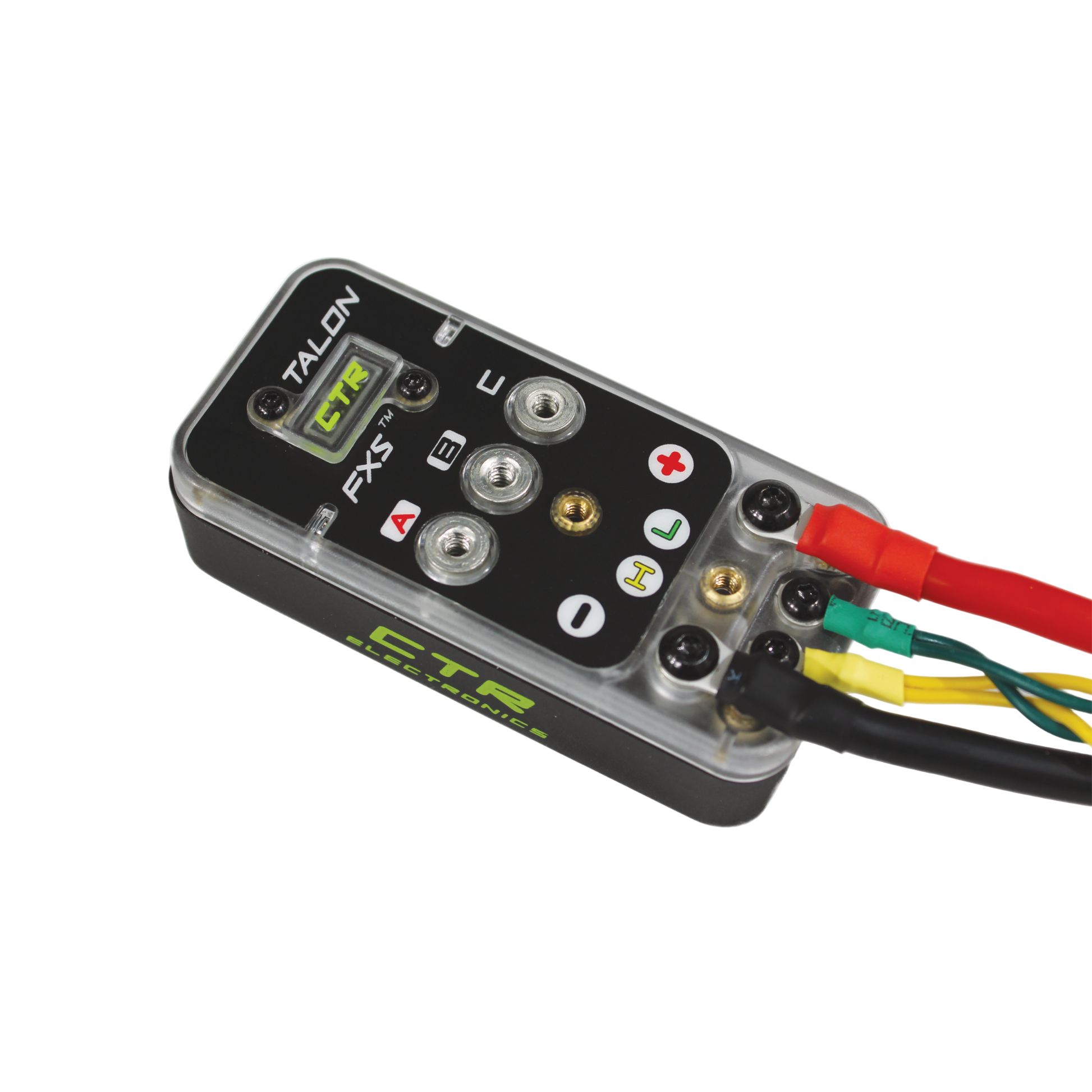

| Connector Types | Ring Terminals | |
| Data Ports | Gadgeteer 10-pin, JST 6-pin | |
| Mounting | On Bottom, 10-32 threaded holes 2 inch spacing | 10-32 Clearance Holes, 4 inch spacing |
| Reverse protection | Yes | |
| CANFD Support | Yes |
| Software |
| Phoenix 6 API Compatible |
| Supported Commutation Types: Trapezoidal with Hall Effect Sensors |
| DutyCycle and Voltage Control Output Types. |
| Motion Magic motion profiles |
| Brake configuration via Brake/Coast config in API or Phoenix Tuner X |
| Reset to Factory Default via Phoenix Tuner X |
| Out-of-the-box PWM Calibration compatible with FRC |
| CAN bus or PWM control automatically detected over the same wires (pioneering feature of CTR-Electronics controllers) |
| LED indicators blinking proportionately to output speed for easier debugging. |
| Follower Mode - Talon FXS can auto follow output of another Talon FX or Talon FXS |
| Integrated PID control running at 1Khz |
| Independent limits for supply current and stator current |
