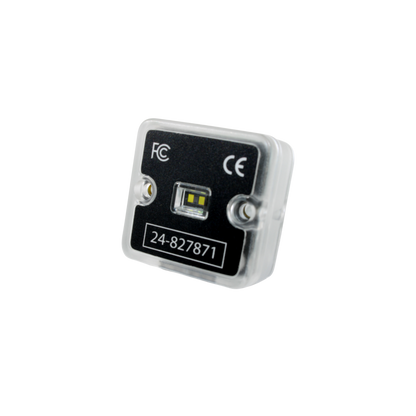

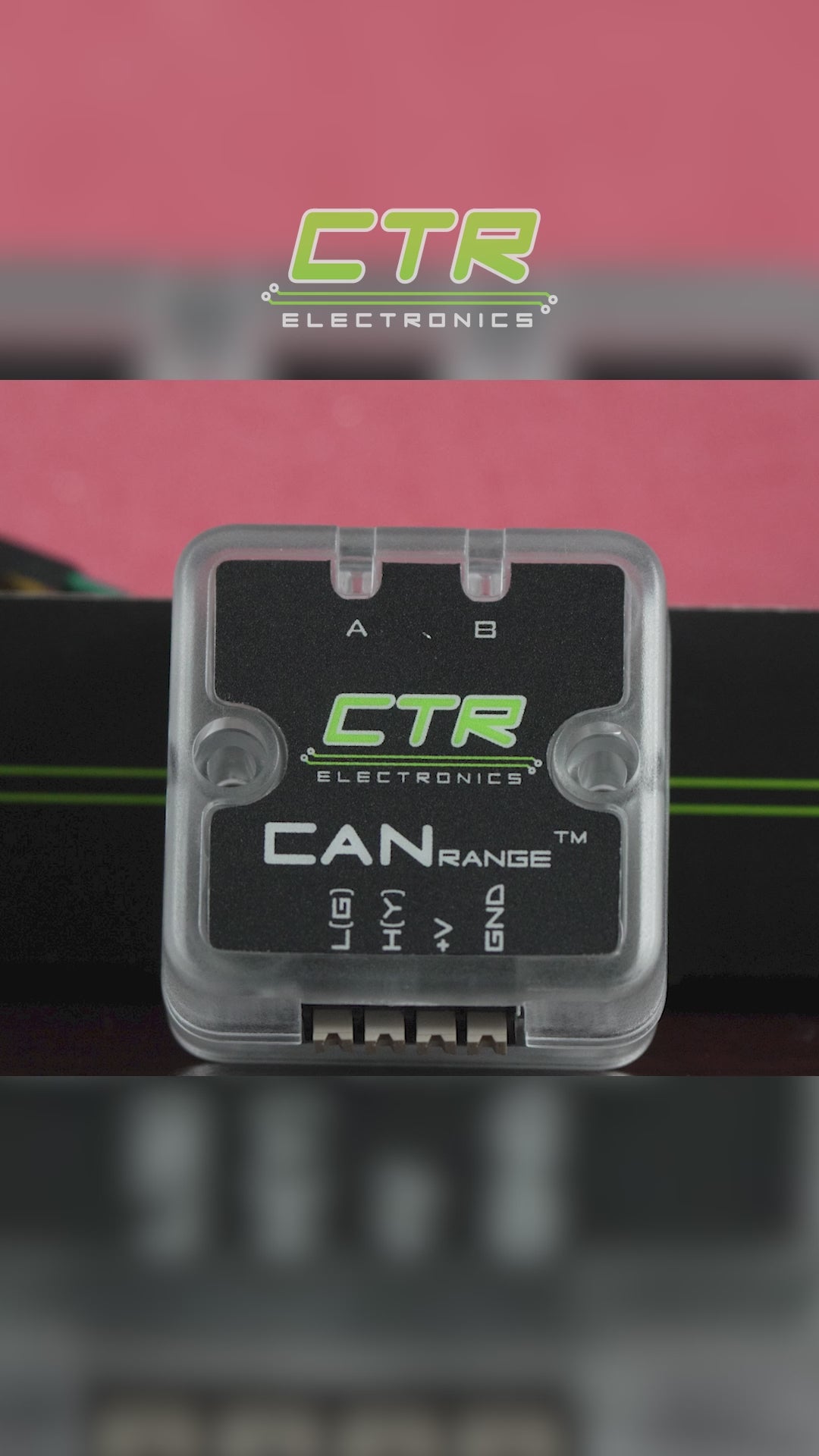

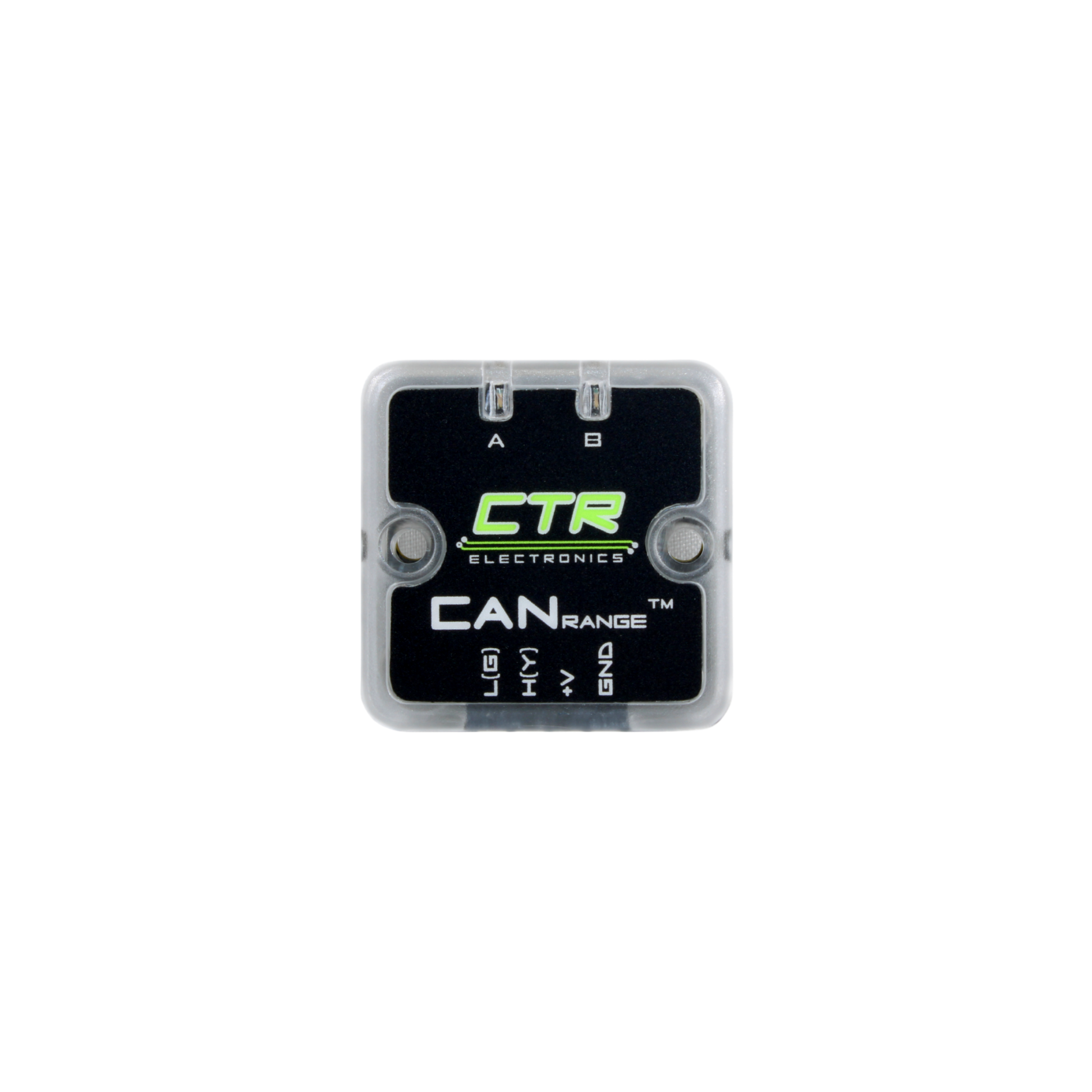

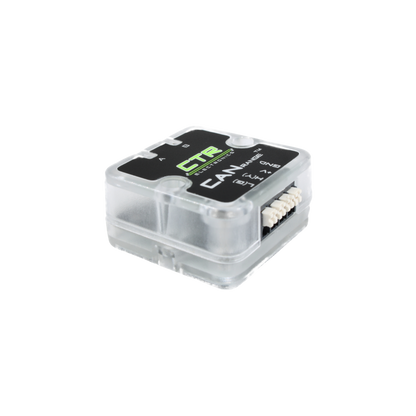

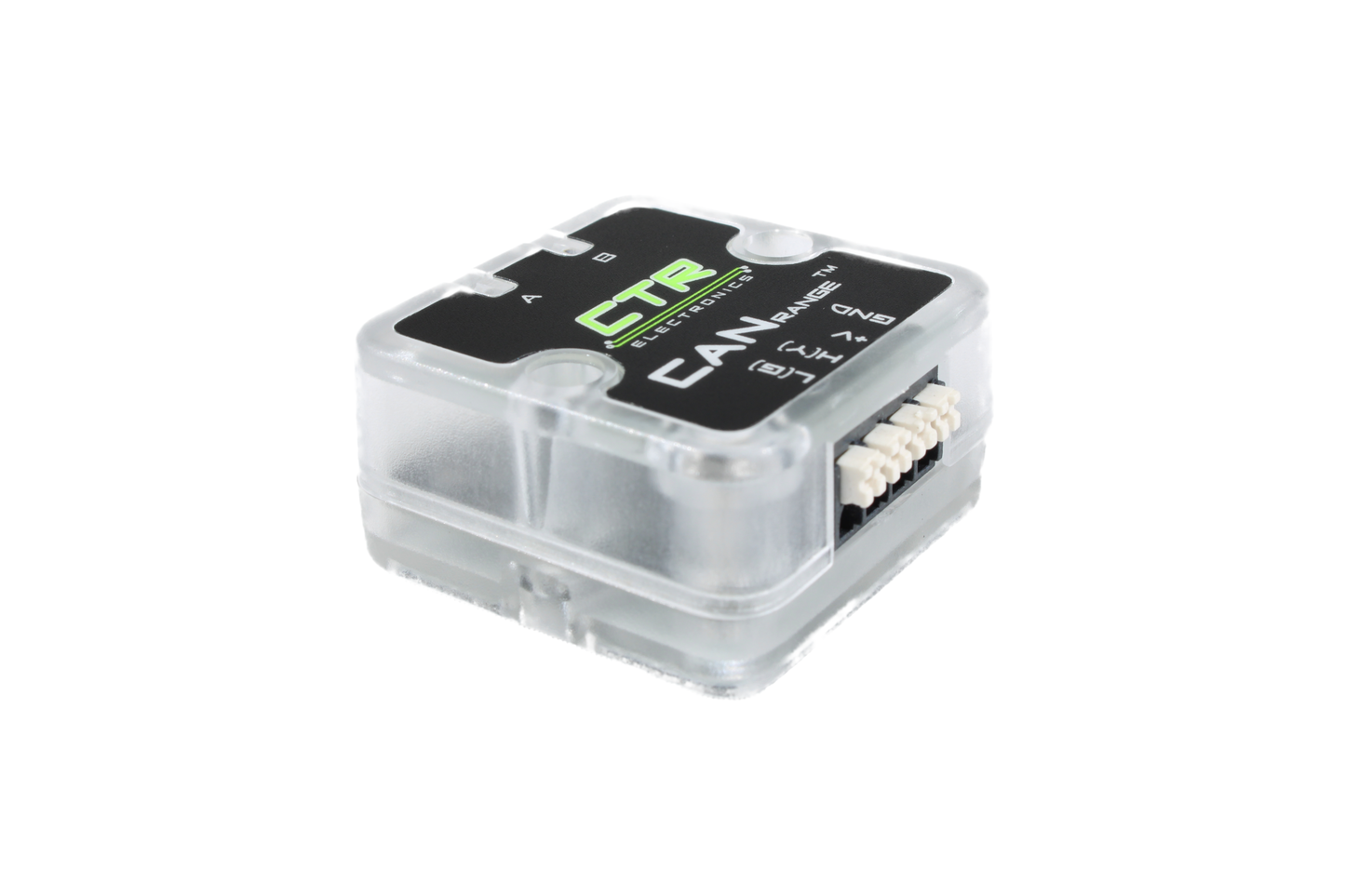

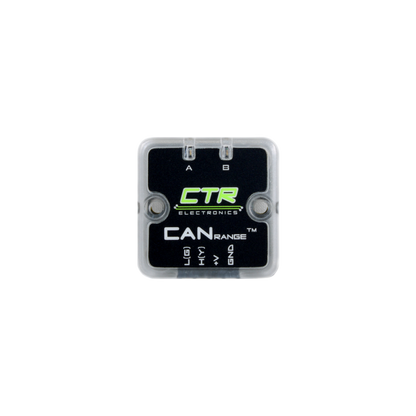

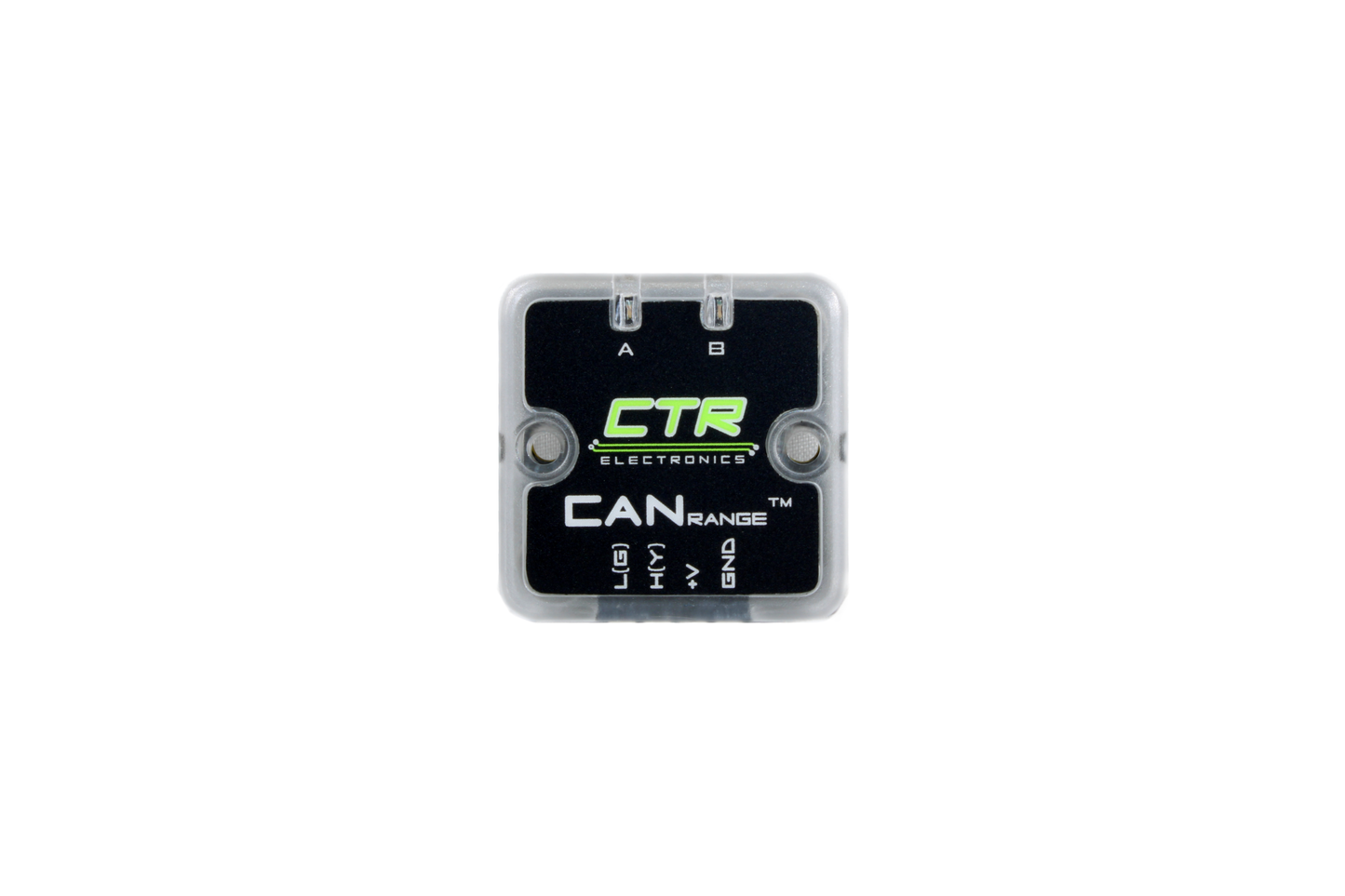

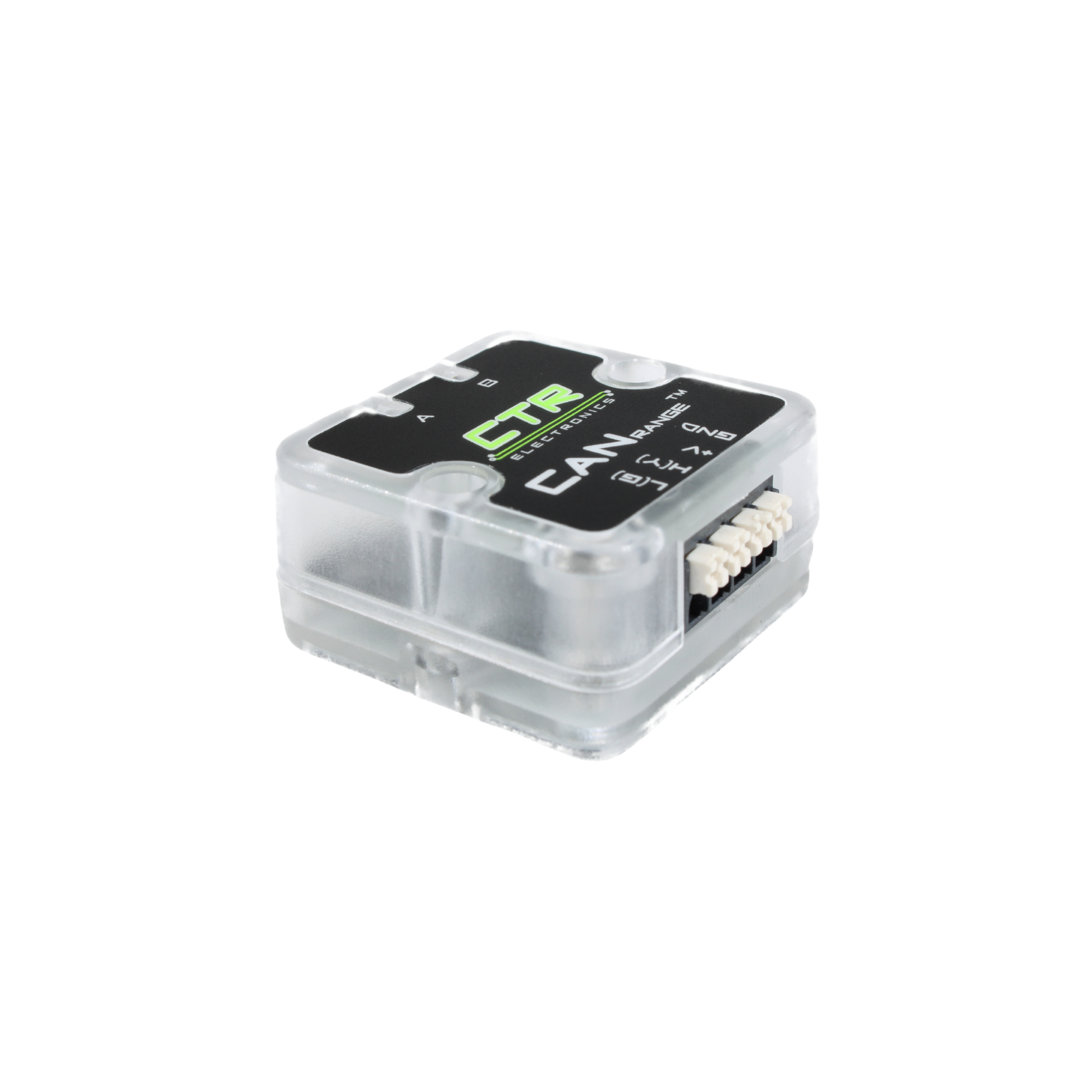

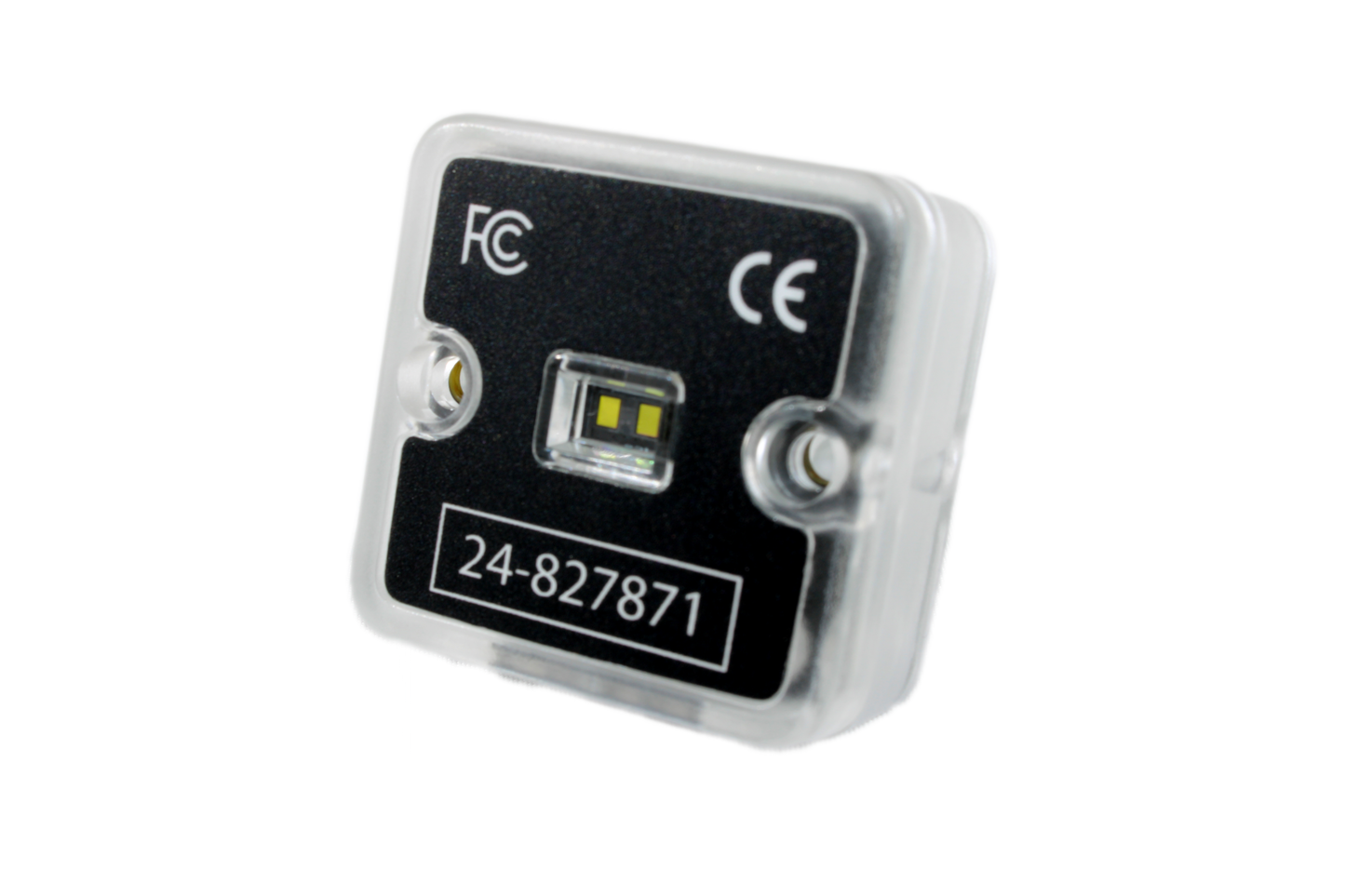

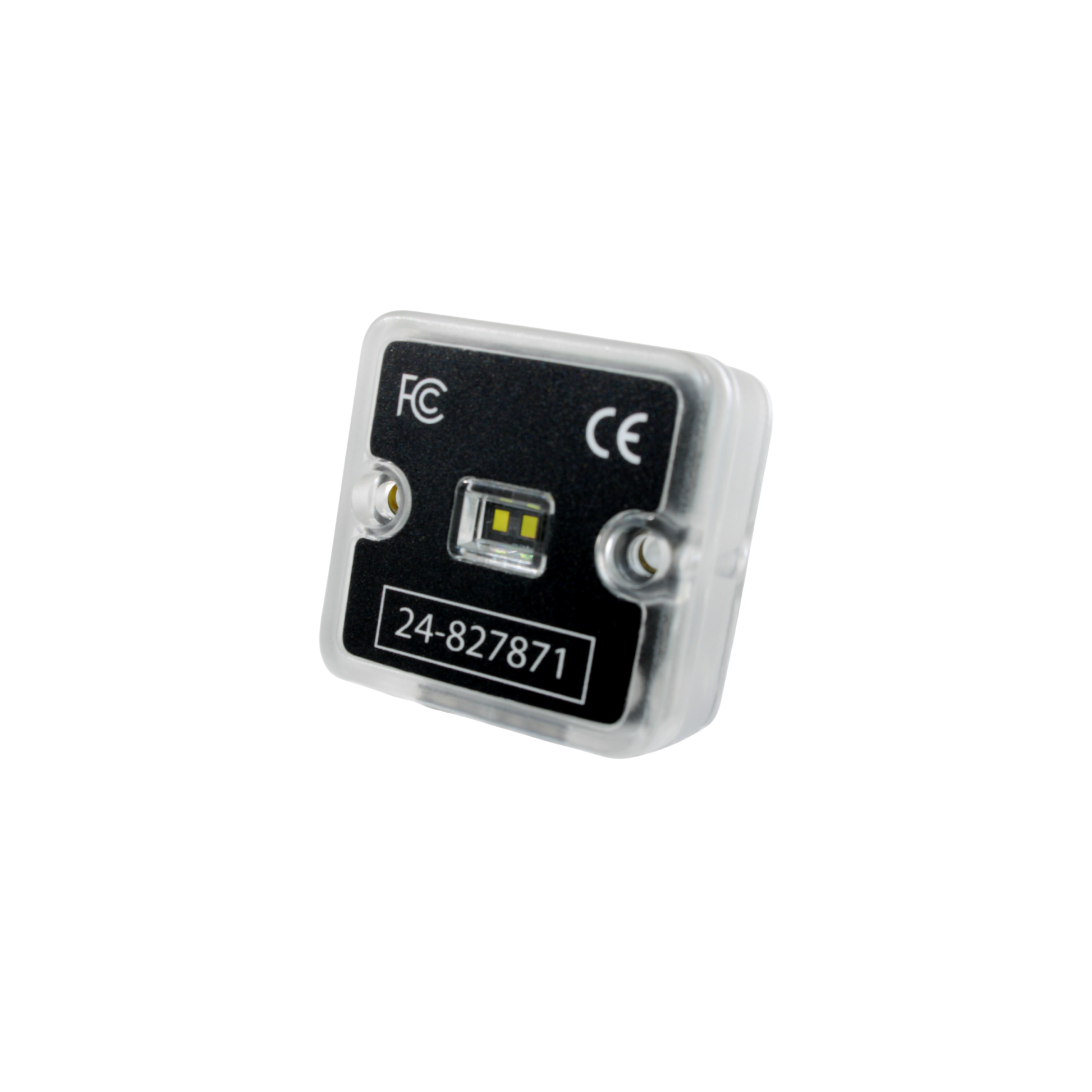

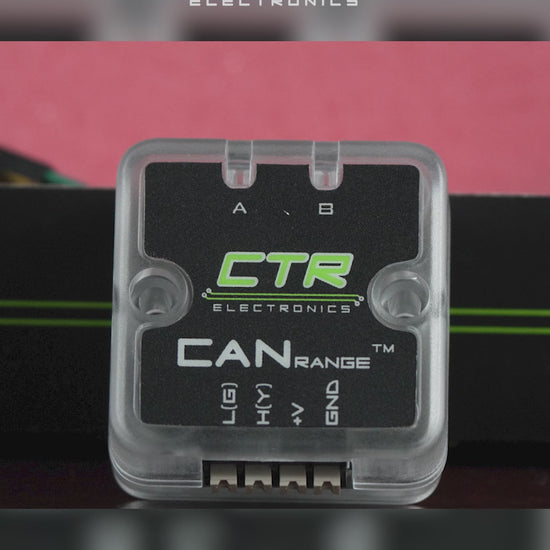

CANrange

The CANrange™ is a CAN-enabled distance sensor that’s designed to give robotics teams and automation professionals accurate and dependable proximity data without the headaches of traditional optical sensors. Measuring from 1 cm out to 300 cm with 1 mm resolution, it lets you configure custom distance triggers in software- effectively replacing fixed break-beam sensors and physical limit switches with a single device.

Housed in a durable, fully enclosed casing, the CANrange hooks directly into the CTR Electronics ecosystem with full Phoenix 6 API support for fast setup, live telemetry, and direct closed-loop control.

• 1 cm to 300 cm Range with 1 mm Resolution: Gives you tight, consistent spatial tracking whether you're managing game pieces in an intake, indexing mechanisms, or monitoring mechanism position.
• Three Measurement Modes: Switch between Short Range, Long Range, and a 100 Hz Short Range mode (with standard mode sampling configurable up to 50 Hz) to match your team’s control loop speeds.
• Software-Defined Proximity: Set custom trigger points in code to mimic a traditional photo-eye or limit switch- no re-drilling brackets or physically realigning sensors when your design changes.
• Phoenix 6 Native Support: Plugs right into your CAN network with full Phoenix 6 and Phoenix Pro compatibility for clean diagnostics, live data plotting, and direct feedback control.
• Pre-Calibrated & Tough: Ships calibrated and ready to mount. The sealed housing protects internal optics from field dust and debris, while built-in protection handles reverse wiring and ESD spikes up to 30 kV.
• Eye-Safe Laser: Uses a Class 1 laser light source meeting IEC 60825-1:2014 standards, keeping it completely safe for pit crew members and operators.

Technical Specifications

• Detection Range: 1 cm to 300 cm
• Resolution: 1 mm
• Update Rates: Up to 100 Hz (Short Range), up to 50 Hz (Standard Short & Long Range)
• Communication: CAN Bus (Phoenix 6 Architecture)
• Laser Safety: Class 1 Eye-Safe (IEC 60825-1:2014)
• Circuit Protection: Reverse polarity protected, ESD protected up to 30 kV
• Enclosure: Fully enclosed, dust-resistant housing

Ditch the Fragile Sensors

Delicate bare-board sensors and tangled signal wires are constant failure points on a robot. Because the CANrange processes distance math and threshold logic internally, it offloads heavy calculations from your main controller and hands your code clean, low-latency measurements right out of the box.

Measurement Modes

• Short Range
  • Up to 100 cm distance
  • User configurable sensor sampling rate 5-50Hz
• Long Range
  • Up to 300 cm distance
  • User configurable sensor sampling rate 5-50Hz
• 100Hz Short Range
  • Up to 100 cm distance
  • Sensor sampling rate fixed at 100Hz
