CANdi™
CANdi™
SKU:24-676873
In stock
Couldn't load pickup availability

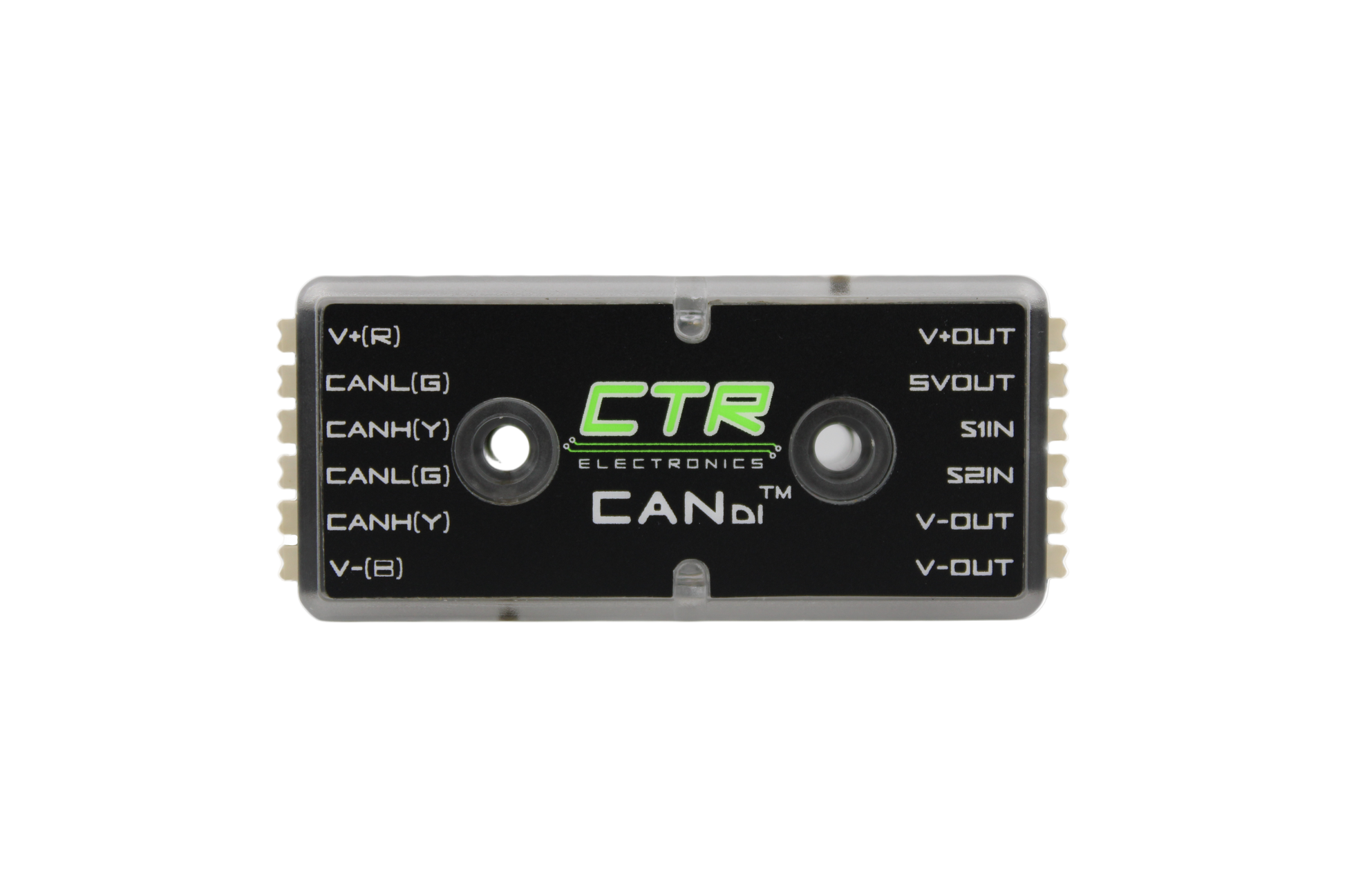

CTR Electronics' CANdi™ branded device seamlessly integrates digital signals into existing CAN bus networks, simplifying wiring and allowing multiple devices to share and utilize valuable input data.
Features Include:
- High input voltage range
- Seamless connection with digital sensor
- Floating pin detection
- Supports QEI decoding, PWM decoding, and normal digital input
- Integration with Phoenix 6 API
- Short circuit protection
- Overcurrent protection
- Input Voltage detects 3.3V - 24V nominal
- NPN/PNP sensing circuits are both supported
Specs:
Electrical |
|
|---|---|
|
Nominal Voltage |
12V/24V |
|
Recommended Min/Max Voltage |
Min Voltage: 6V Max Voltage: 28V |
|
Output Voltage |
Vbat and Regulated 5V |
|
Max Output Current |
0.3A |
Features |
Output Short/Overcurrent protection |
|
Reverse Protection |
|
|
Digital Inputs will work from 3.3V Logic Level up to 24V |
|
|
Quadrature/PWM Decoding |
|
|
Outputs both VBAT and Regulated 5V for powering a variety digital devices |
|
|
Input Voltage Reporting over CAN |
|
|
Output current reporting over CAN |
|
Communication |
CAN 2.0 & CAN FD with CANivore |

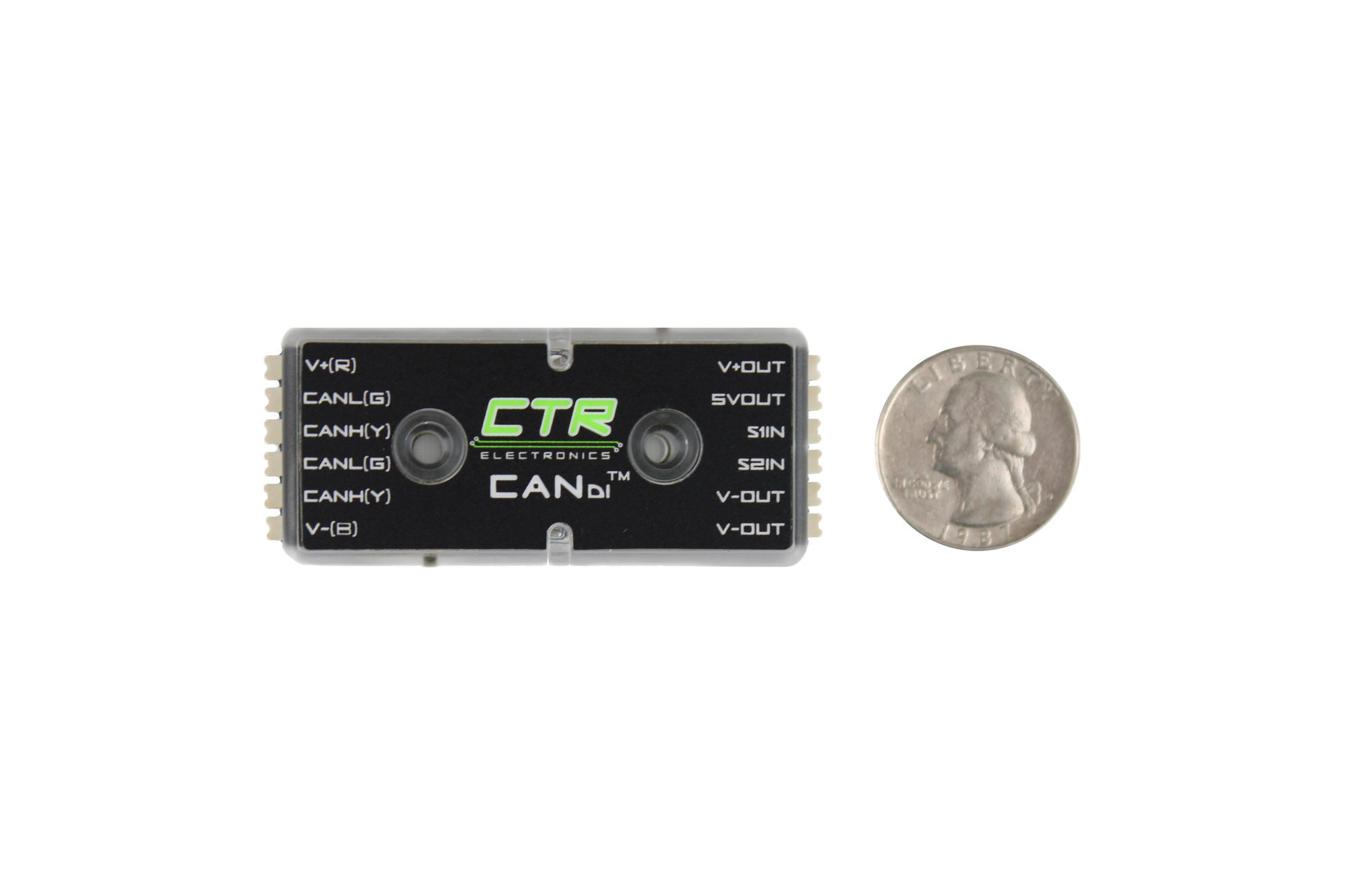

Hardware |
|
|
Width |
1.05 inches |
|
Height |
0.83 inches |
|
Length |
2.43 inches |
|
Weight |
.062lbs |
|
Hole Spacing` |
1 inch |
