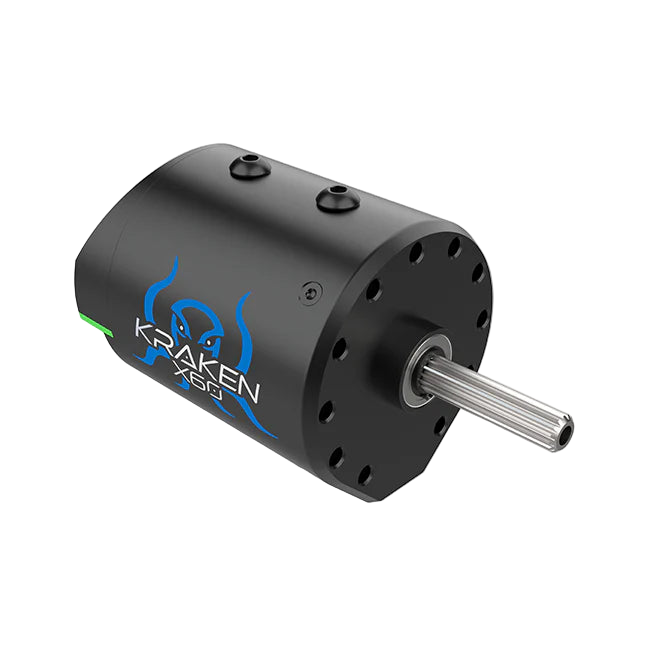

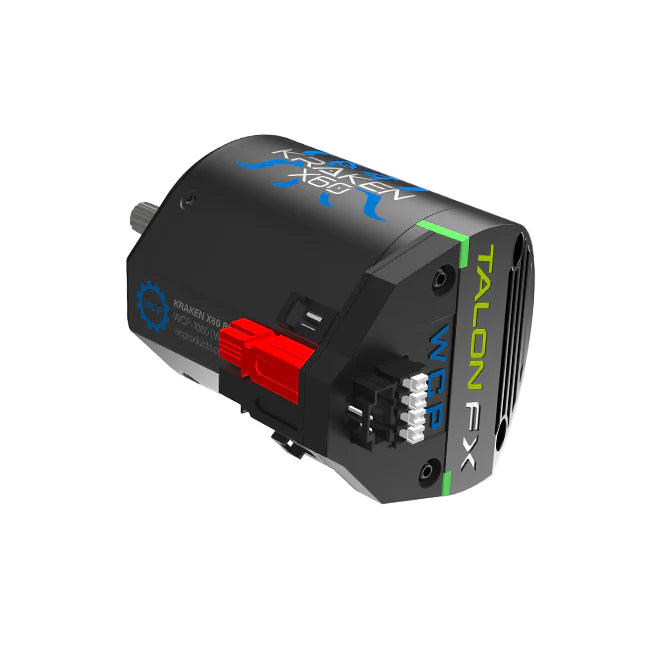

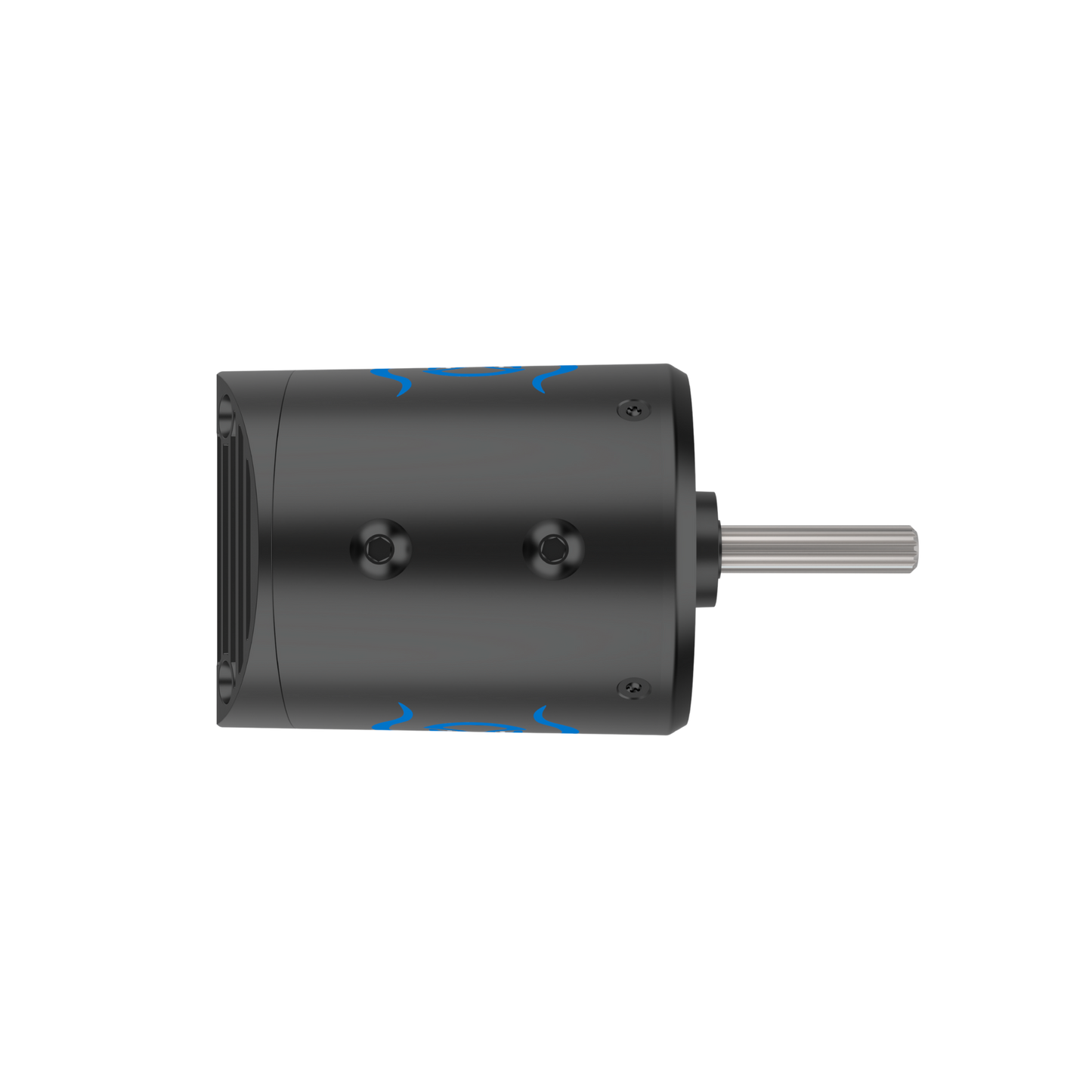

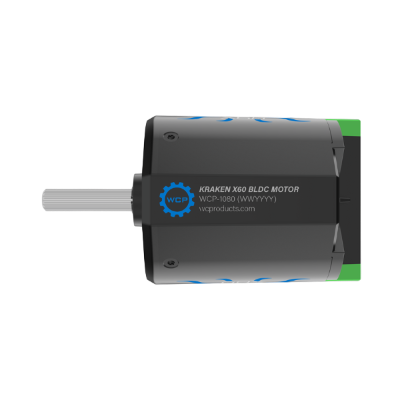

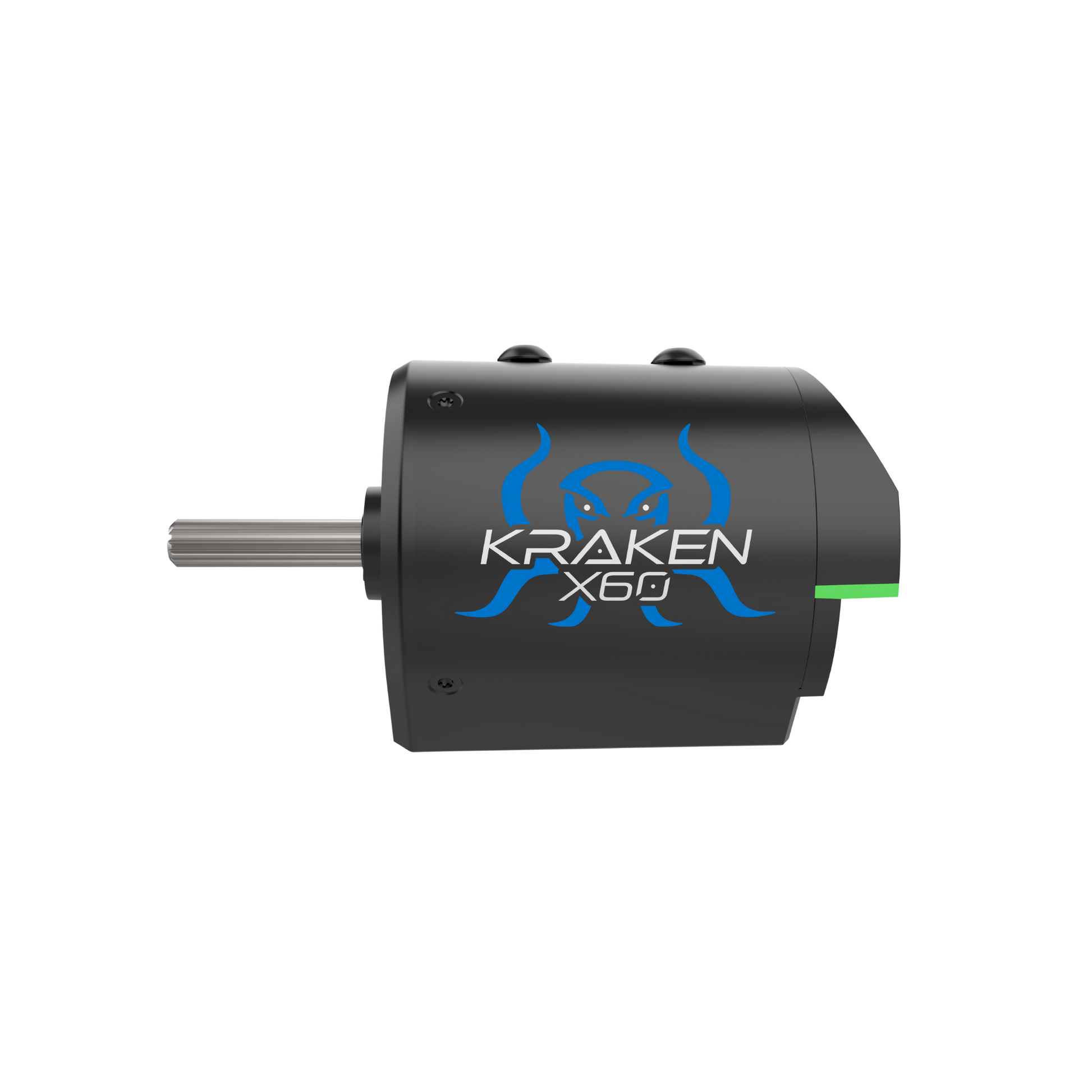

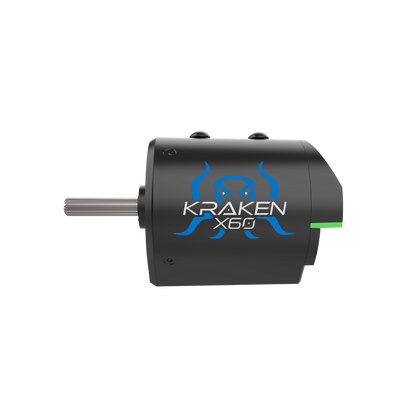

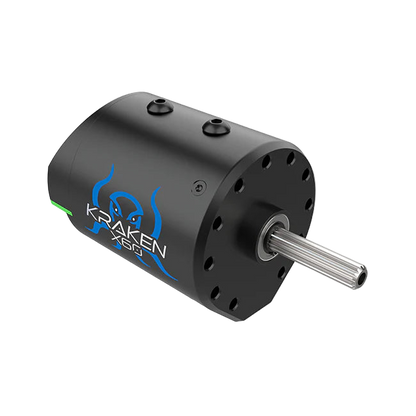

The Kraken X60 is a high-power brushless motor built for the rigors of the FIRST Robotics Competition and other high-performance robotics applications.

Featuring 1,108W peak power, 87% max efficiency, and 7.09Nm stall torque, it integrates CTR’s advanced Talon FX™ motor controller for precise onboard motion control. With a durable SplineXS shaft, built-in encoder, and full compatibility with the CTR Electronics ecosystem, it’s engineered for reliability, integration, and top-tier control. Assembled and QA tested at CTR HQ in Michigan.

• 1,108W peak power (413W@40amp)*
• 87% max efficiency (@30A)*
• 7.09Nm stall torque*

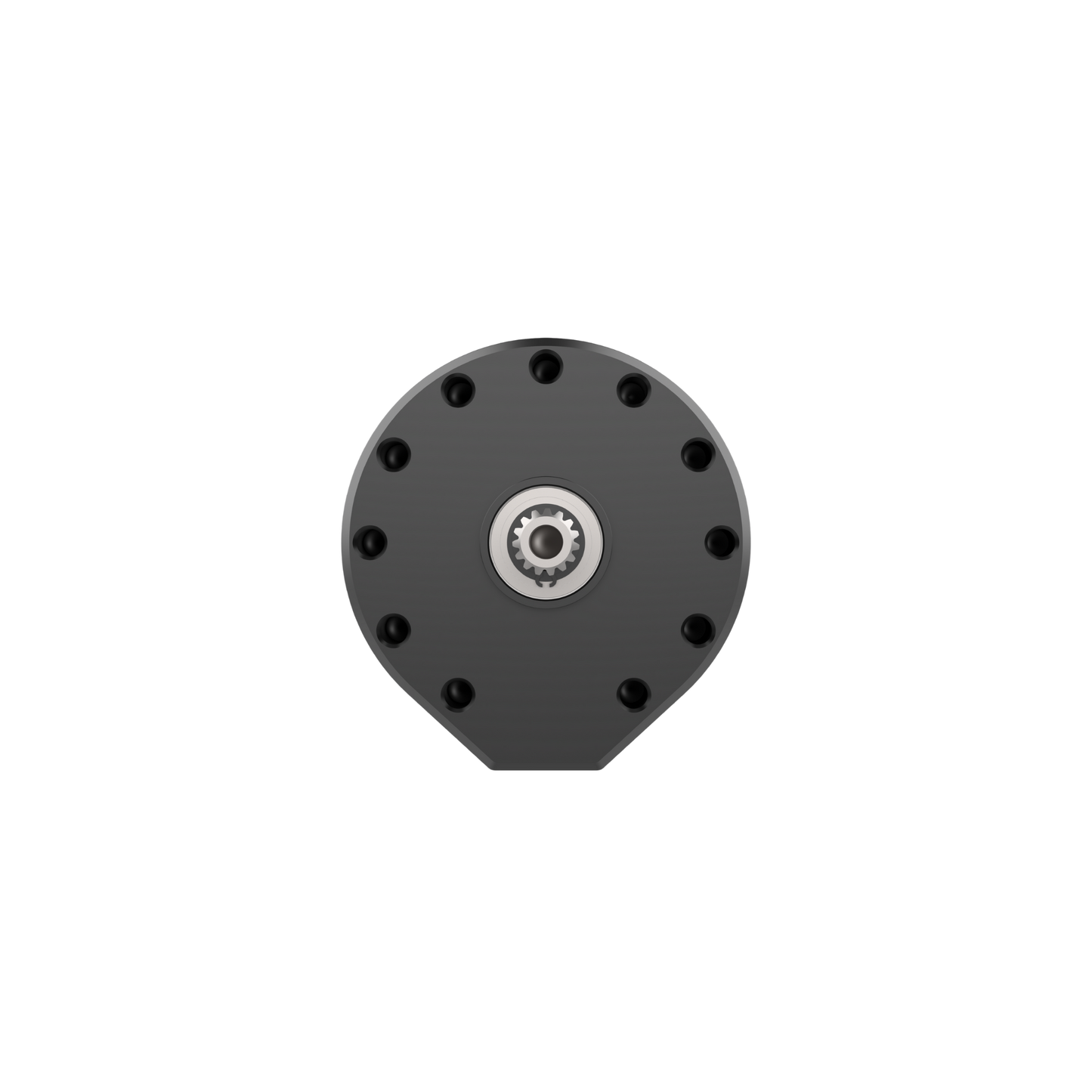

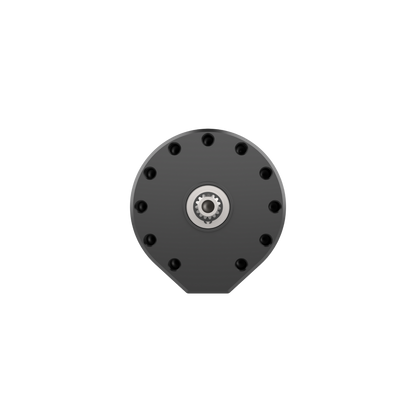

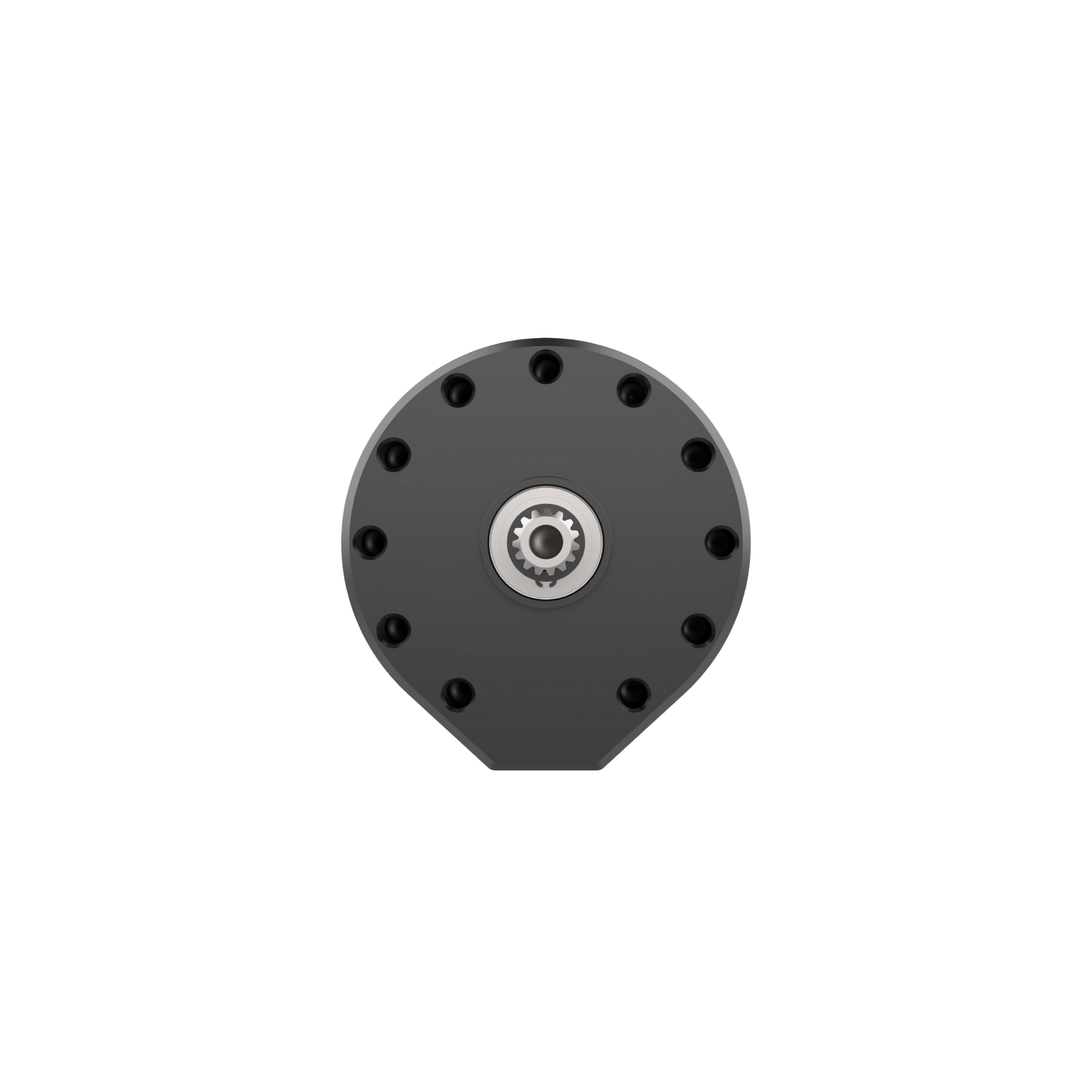

• New SplineXS shaft
• Non-replaceable output shaft

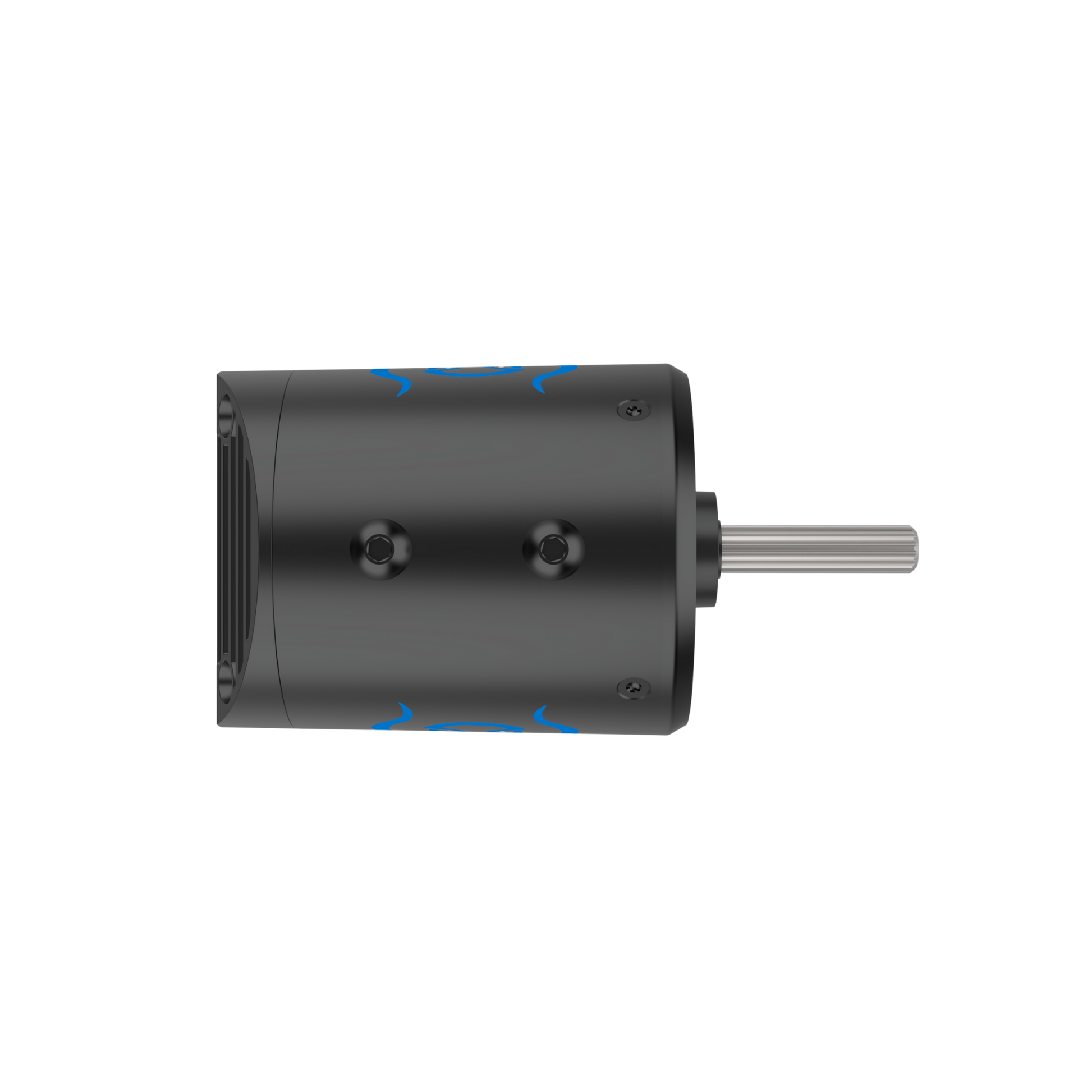

• Versatile mounting options
• Robust mechanical design

Access User Guide, Kit Contents & More!

*= Using trapezoidal commutation

Latest Motor Performance Analysis Report is now available!

Talon FX™ Performance. Control. Ecosystem.

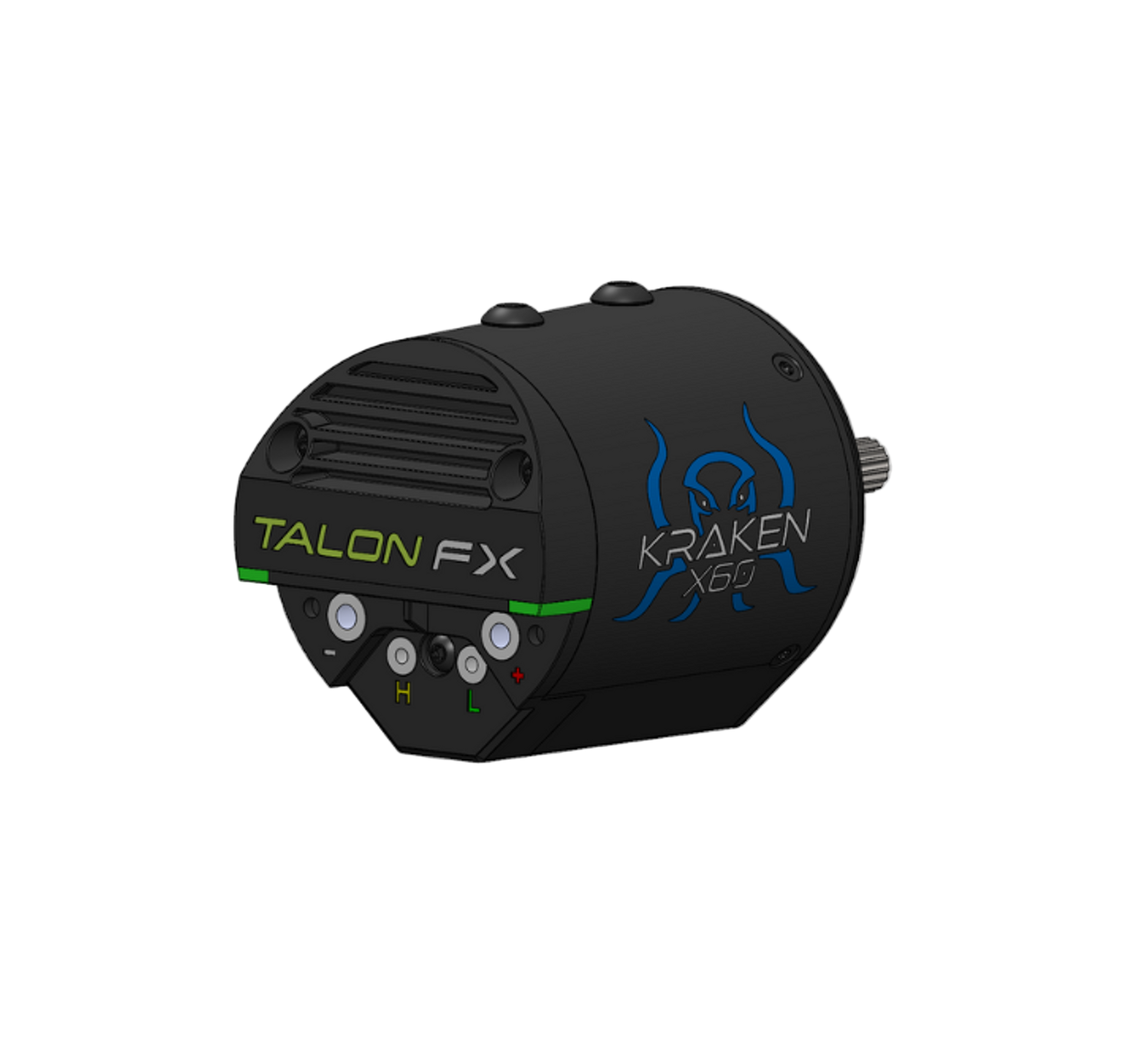

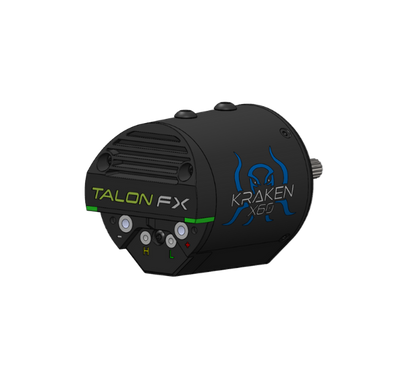

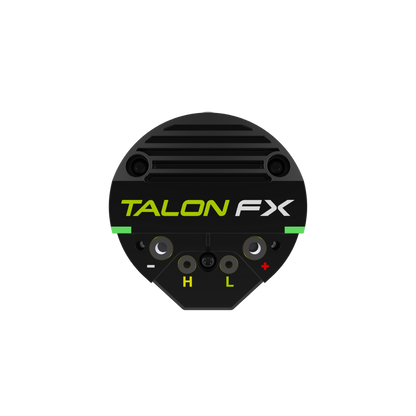

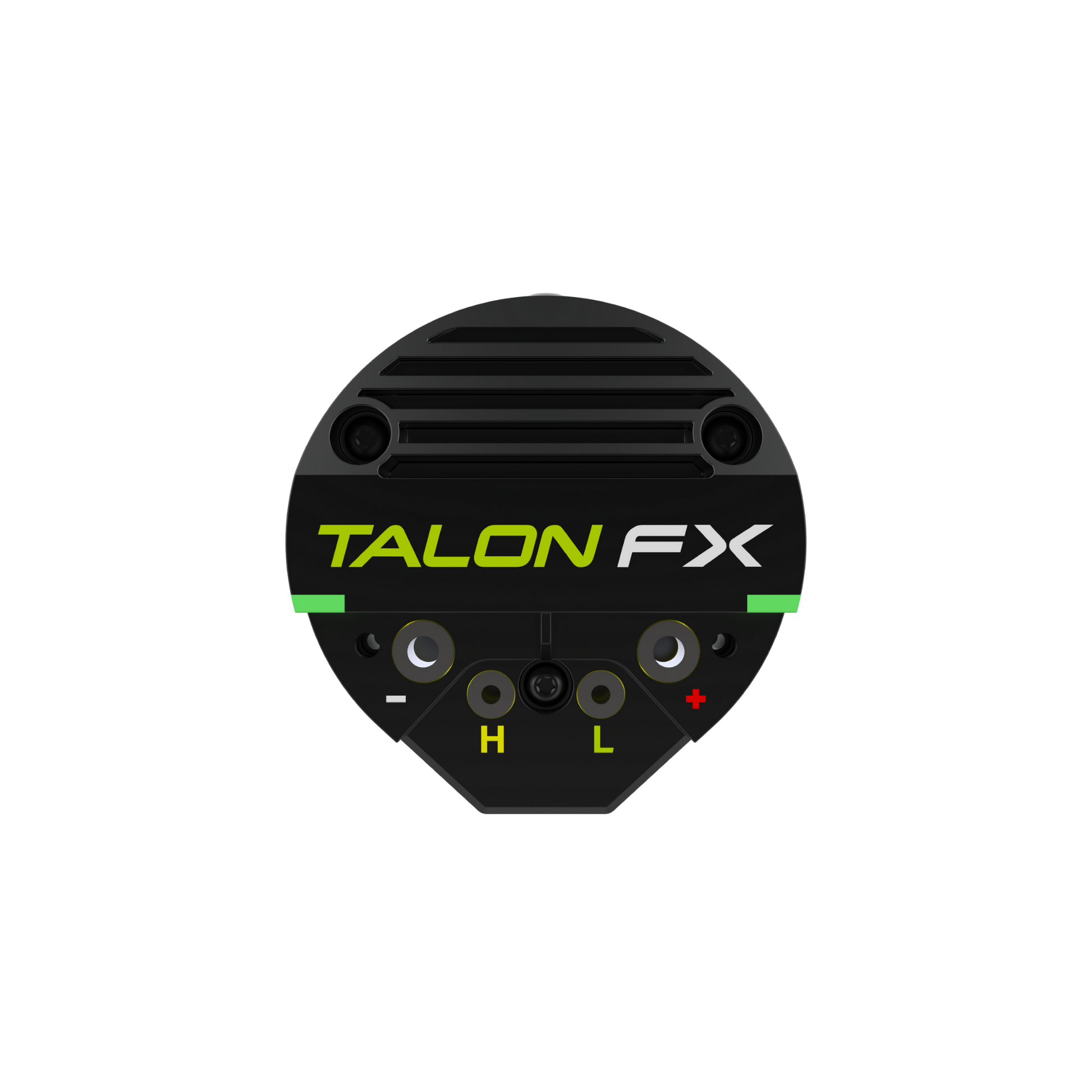

The Kraken X60, powered by Talon FX™ uses the latest BLDC motor control technology from CTR Electronics. The integrated Talon FX™ unlocks the full performance of the Kraken X60 BLDC motor while providing best-in-class motion control. Since the Talon FX™ fully integrates with the rest of the CTR Electronics software and hardware ecosystem, you’ll have a suite of world class tools to maximize your robot’s potential.

“All Match” Performance - High efficiency design reduces heat, provides more power and enables extended run-times under load while maintaining performance.

Integrated Motor/Controller Package - increases reliability and robustness by reducing failure modes.

Built-in High Resolution Encoder not only provides feedback but allows for CTR’s full set of on-board motion control modes including Position, Velocity, MotionMagic, MotionMagic Velocity.

Imported from Detroit: Every single Talon FX™ PCB assembly is built on the electronics production line at the CTR Electronics HQ in Macomb, MI.

• Additionally, CTR Electronics added an automated robotic assembly line at their HQ. This line will be used for final integration of the Talon FX™ and Kraken X60, ensuring quality and consistency during critical steps in the manufacturing process.
• Furthermore, 100% of these units go through final QA testing and validation in Michigan before being shipped to customers.

Kit Contents:

• 1x Kraken X60 Motor, powered by Talon FX™
• 1x Terminal Cover
• 2x #4-40 x 3/4" Button Head Torx Screw (For Terminal Cover)
• 1x 18" Long 10 AWG wire (Red)
• 1x 18" Long 10 AWG wire (Black)
• 1x 18" Long CAN Wire Y-harness
• 2x #6-32 x 1/4" Button Head Torx Screw (Power Terminals)
• 2x #4-40 x 1/4" Button Head Torx Screw (CAN Terminals)
• 1x Kraken X60 Sticker
